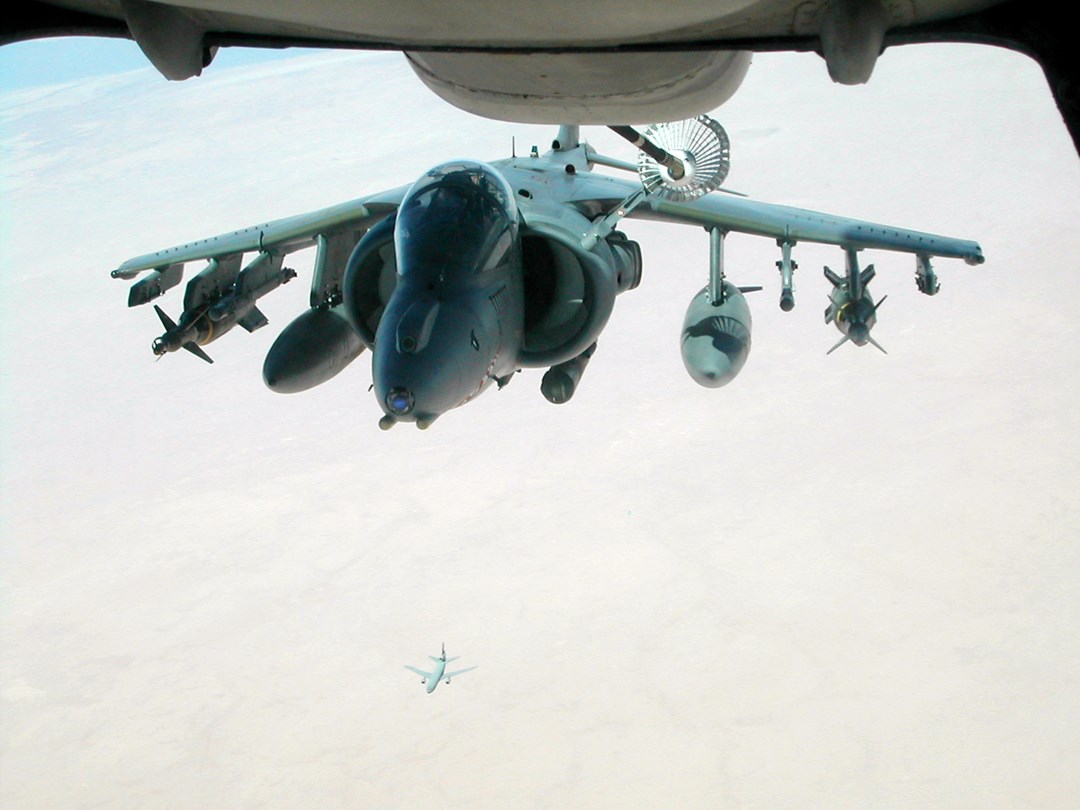

AV-8B Harrier II Plus
AV-8B Harrier II Plus
STOVL Fighter Jets
Basic Information
Name
AV-8B Harrier II Plus
Designation
AV-8B Harrier II Plus
Alternate Designation
EAV-8B
Equipment Type
STOVL Fighter Jets
Manufacturer
Boeing
Date of Introduction
1994
Description
The AV-8B+ Harrier II is the most advanced derivative of the Harrier aircraft produced to date featuring the AN/APG-65 radar as well as full compatibility with the AIM-120 AMRAAM missile and other advanced weaponry. Older USMC AV-8B aircraft were remanufactured to the Harrier plus configuration at $21.6 million each. In the 1990s, the USMC ordered re-manufactured (74) and new built (27) aircraft totaling approximately 100 aircraft to perform day and night attack missions. Spain ordered eight new built and five re-manufactured AV-8B+ aircraft. Italy ordered 20 new built Harrier pluses.
Air & Air Defense Specifications
Crew
1
Max Speed
1080.0 km/h
Range
2500.0 km
Wingspan
9.30 m
Overview (Deagel)
Group
STOVL Fighter Jets
Status
Active
Also Known As
EAV-8B
Origin
United States of America
Contractor
Boeing
Initial Operational Capability (IOC)
1994
Total Production
55
Specifications (Deagel)
Crew
1
Number of Engines
1
Dimensions — Height
3.6 meter
Dimensions — Length
5.6 meter
Dimensions — Main Gun Caliber
25 millimeter
Dimensions — Wingspan
9.3 meter
Mass — Empty Weight
6,744 kilogram
Mass — Max Takeoff Thrust
23,800 pound
Mass — Max Takeoff Weight
14,500 kilogram
Mass — Payload
6,000 kilogram
Performance — Max Range
2,500 kilometer
Speed — Top Speed at High Altitude
300 mps
Gear (Deagel)
Item 1
Air-to-Air Missiles: AIM-120B AMRAAM
Item 2
Air-to-Air Missiles: AIM-9M Sidewinder
Item 3
Bombs: GBU-12 Paveway II
Item 4
Bombs: GBU-16 Paveway II
Item 5
ESM & Warning Systems: AN/AAR-57 CMWS
Item 6
ESM & Warning Systems: AN/ALR-67
Item 7
Fighter Aircraft Engines: F402-RR-408 (1)
Item 8
Jamming Systems: AN/ALQ-164
Item 9
Medium Caliber Cannons: GAU-12/U (1)
Item 10
Optronic Systems: LITENING
Item 11
Optronic Systems: LITENING AT
Item 12
Optronic Systems: LITENING ER
Item 13
Optronic Systems: LITENING II
Item 14
Radar Systems: AN/APG-65 (1)
Item 15
Rockets: APKWS
Item 16
Standoff Weapons: AGM-65E Maverick
Variants
Variant 1
AV-8B Harrier II
Variant 2
AV-8B Harrier II Plus
Details
Country of Origin
United States
Category
Multirole Aircraft
Air > Multirole Aircraft
Sources
deagel.com: https://www.deagel.com/x/x/a000536
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
5.6 m
Width
9.3 m
Height
3.6 m
Weight
14500 kg
Related Equipment (1)
Variant of
Operators (3)
United States
Italy
Spain
