REM-KL Russian 8x8 Recovery Vehicle
REM-KL
Armored Recovery Vehicle
Other
Basic Information
Name
REM-KL Russian 8x8 Recovery Vehicle
Designation
REM-KL
Alternate Designation
REM-KL
Equipment Type
Armored Recovery Vehicle
Manufacturer
Proekt-Technika
Date of Introduction
2016
Description

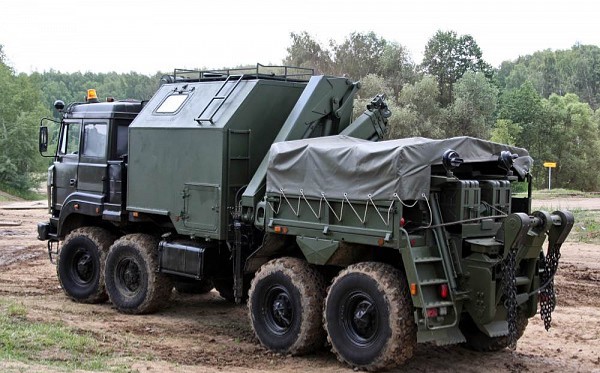

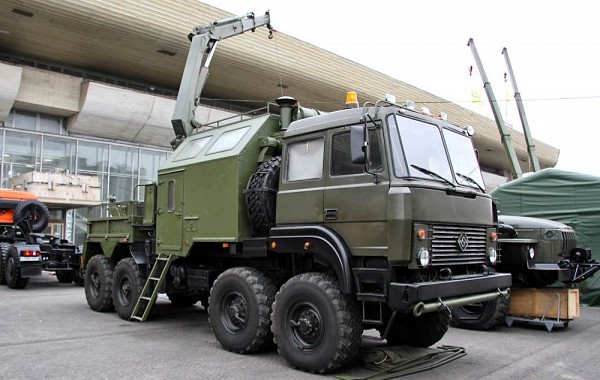

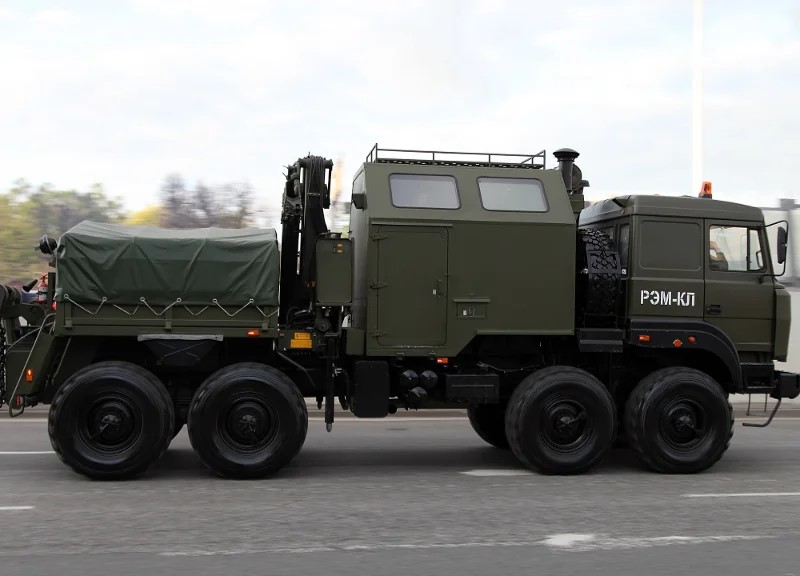

The REM-KL Russian 8x8 Recovery Vehicle was developed to support various types of 6x6 and 8x8 Ural and KamAZ trucks in the field. The REM-KL is based on the Ural 5323-62 chassis. It is equipped with a workshop, small crane and recovery winch. Vehicles can be hitched and towed in semi-lifted position. The REM-KL was adopted by Russian forces and is used in limited numbers.
Ground Specifications
Crew
3
Mobility Type
Wheeled (8x8)
Engine
V-8 Turbocharged Diesel (300 hp)
Max Speed
90.0 km/h
Range
1000.0 km
System
Alternative Designation
REM-KL
Type
Recovery Vehicle
Manufacturer
Proekt-Technika
Configuration
8x8
Crew
3 ea
Winch
10.5 tons
Lifting Crane
2.8 t max load at 3 m;
0.95 t max load at 8.1 m;
8.25 m max height of hook
Recovery Capacity
16 t vehicle semi-lifted off road;
22 t vehicle semi-lifted on road
Note
The time required to prepare the vehicle for recovery operations is less than ten minutes, while it takes 12 minutes of preparation time for towing operations.
Dimensions
Length
9.2 m
Width
2.95 m
Height
3.56 m
Weight, Combat
18.25 tons
Automotive
Engine Name
YaMZ-238B
Engine Type
V8 turbo-diesel
Engine Power
300 hp at 2.000 rpm
Fuel
510 L
Maximum Range
1,000 km
Maximum Speed
90 km/h
Gradient
62%
Side Slope
44%
Vertical Step
0.4 m
Trench
1.2 m
Fording
1.2 m
Protection
Armor
The crew compartment is outfitted with three ballistic glass windows for observation purposes.
Applique Armor
None
NBC Protection
No
Smoke Equipment
No
Details
Country of Origin
Russia
Category
Survivability
Land > Survivability
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.2 m
Width
2.95 m
Height
3.56 m
Weight
18250 kg
Operators (1)
Russia
