Krasnopol

Krasnopol

Projectiles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Krasnopol
Designation
Krasnopol
Alternate Designation
2K25
Equipment Type
Projectiles
Manufacturer
Kalashnikov Concern, KBP
Date of Introduction
Description

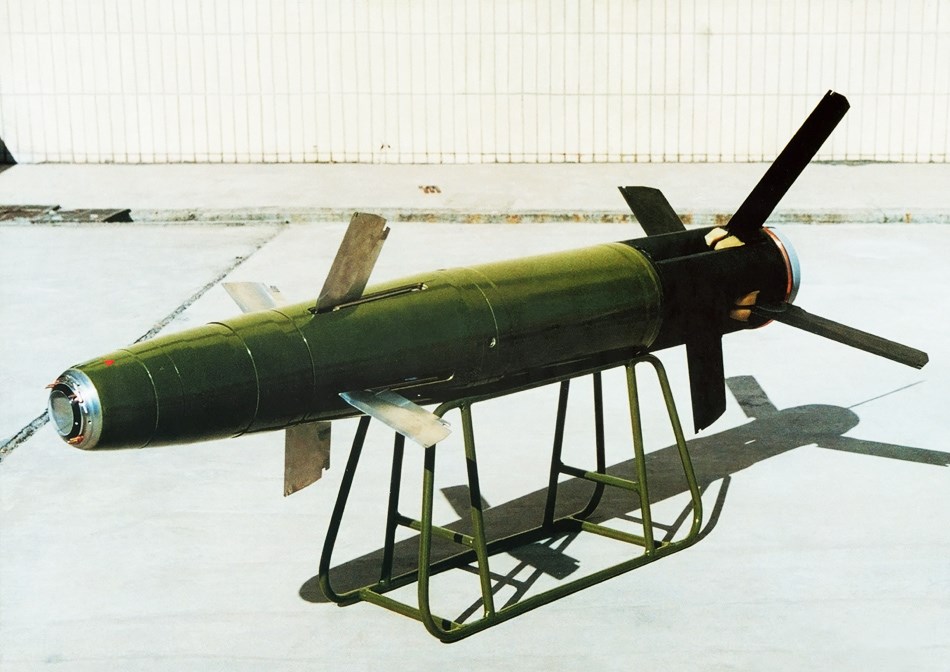

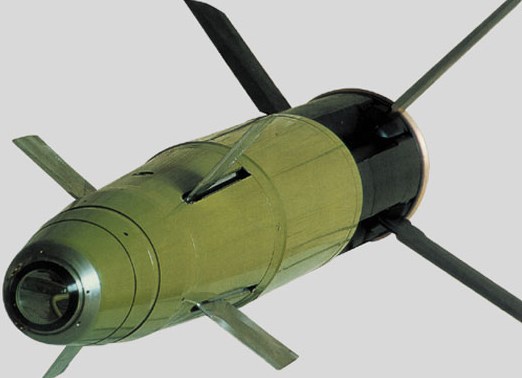

The Krasnopol is a 152mm artillery projectile designed to engage armored targets using a semi-active laser guidance system in the terminal phase of its trajectory. Fortifications, ships and enemy artillery sites can be engaged accurately and effectively by the Krasnopol projectile. Once fired, the Krasnopol projectile follows a ballistic trajectory approaching to the target. Then the forward observer aims a laser designator illuminating the target at a maximum range of 7,000 meters. Then the Krasnopol seeker locks on the target and the navigation system corrects its trajectory in order to impact on the selected/illuminated point. The Krasnopol projectile follows a top attack pattern to achieve an optimized probability of kill against the armored target.

Ground Specifications
Range 20.0 km
Overview (Deagel)
Group Projectiles
Status Active
Also Known As 2K25
Origin Russia
Contractors Kalashnikov Concern, KBP
Total Production ?
Unitary Cost USD $37,000
Specifications (Deagel)
Dimensions — Caliber 152 millimeter
Dimensions — Length 1,305 millimeter
Mass — Warhead 20.5 kilogram
Mass — Weight 50.8 kilogram
Performance — Max Range 20,000 meter
Performance — Min Range 3,000 meter
Variants
Variant 1 Krasnopol
Variant 2 Krasnopol-M
Variant 3 Krasnopol-M2
Details
Country of Origin Russia
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
50.8 kg
Operators (5)
Russia
China
Ukraine
India
Venezuela
