KAB-1500LG-OD-E
KAB-1500LG-OD-E
Bombs
Basic Information
Name
KAB-1500LG-OD-E
Designation
KAB-1500LG-OD-E
Alternate Designation
—
Equipment Type
Bombs
Manufacturer
Tactical Missiles Corporation (KTRV)
Date of Introduction
2005
Description

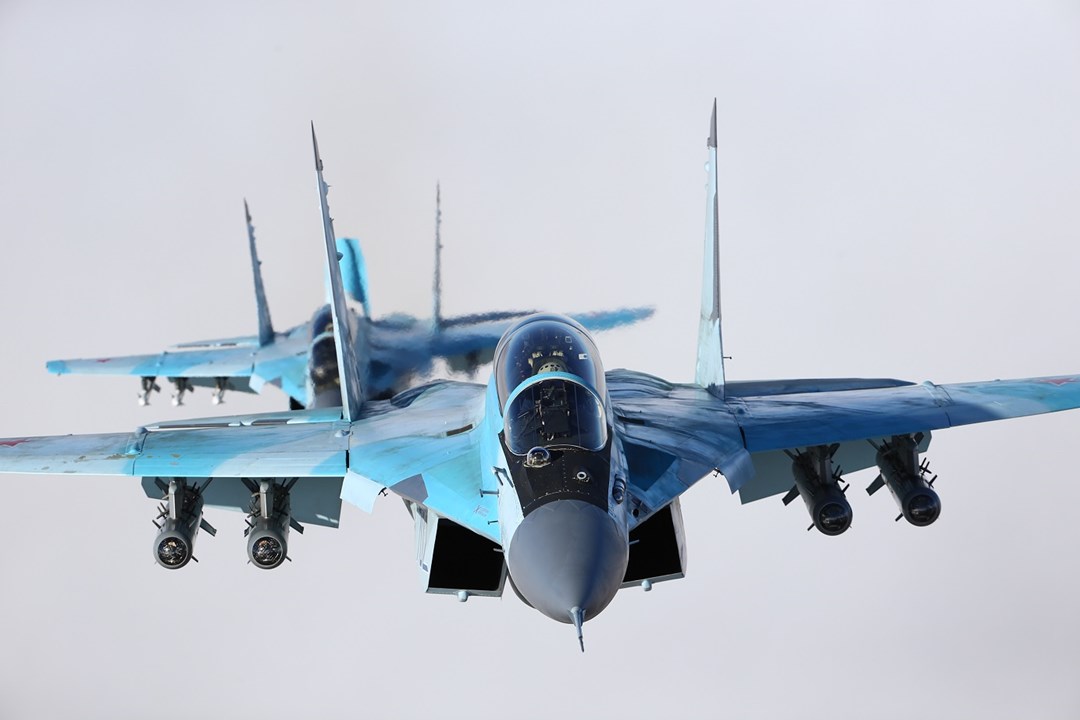

The KAB-1500LG-OD-E as part of the KAB-1500L bomb family, also referred to as KAB-1500LG-E, is a 1,500 kg, laser-guided bomb designed to hit stationary ground and surface targets such as railway, highway bridges, facilities, ships and strongholds. This bomb is carried by the Su-24M, Su-34, Su-35 and Mig-35 aircraft. The KAB-1500L is the Russian counterpart to United States Paveway II/III laser-guided bombs. The bomb is equipped with a laser air-stabilized homing head. Once released, the pilot or a third party must aim at the target with a laser designator in order to successfully direct the KAB bomb. The KAB-1500LG-OD-E features an impact fuze and a fuel air explosive (FAE) warhead.
Overview (Deagel)
Group
Bombs
Status
Active
Origin
Russia
Contractor
Tactical Missiles Corporation (KTRV)
Initial Operational Capability (IOC)
2005
Total Production
?
Specifications (Deagel)
Dimensions — Diameter
580 millimeter
Dimensions — Length
4.2 meter
Dimensions — Width
0.85 meter
Dimensions — Wingspan
1.3 meter
Mass — Explosive Weight
650 kilogram
Mass — Warhead
1,170 kilogram
Mass — Weight
1,450 kilogram
Performance — CEP
7 meter
Performance — Max Launch Altitude
10,000 meter
Performance — Min Launch Altitude
1,000 meter
Speed — Max Launch Airspeed
1,100 kph
Speed — Min Launch Airspeed
550 kph
Variants
Variant 1
KAB-500KR
Variant 2
KAB-500L
Variant 3
KAB-1500LG-F-E
Variant 4
KAB-1500KR
Variant 5
KAB-1500LG-Pr-E
Variant 6
KAB-500OD
Variant 7
KAB-1500LG-OD-E
Details
Country of Origin
Russia
Sources
deagel.com: https://www.deagel.com/x/x/a001035
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.2 m
Width
0.85 m
Height
—
Weight
1450 kg
Operators (1)
Russia
