ZMA-X Turkish Unmanned Ground Vehicle (UGV)
ZMA-X
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
ZMA-X Turkish Unmanned Ground Vehicle (UGV)
Designation
ZMA-X
Alternate Designation
ZMA-X
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Aselsan
Date of Introduction
2024
Description

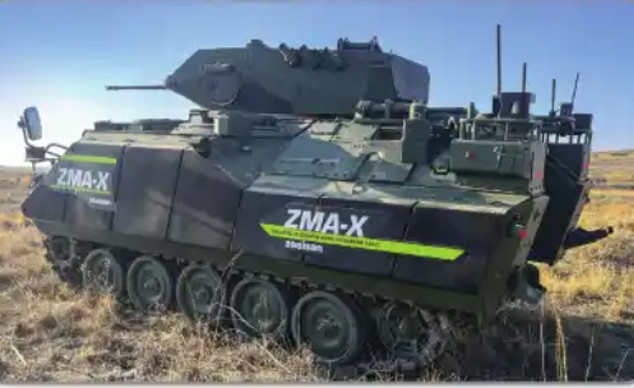

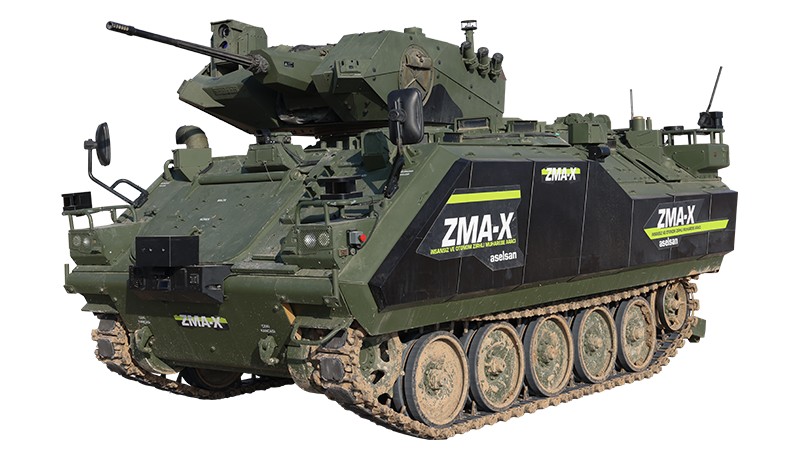

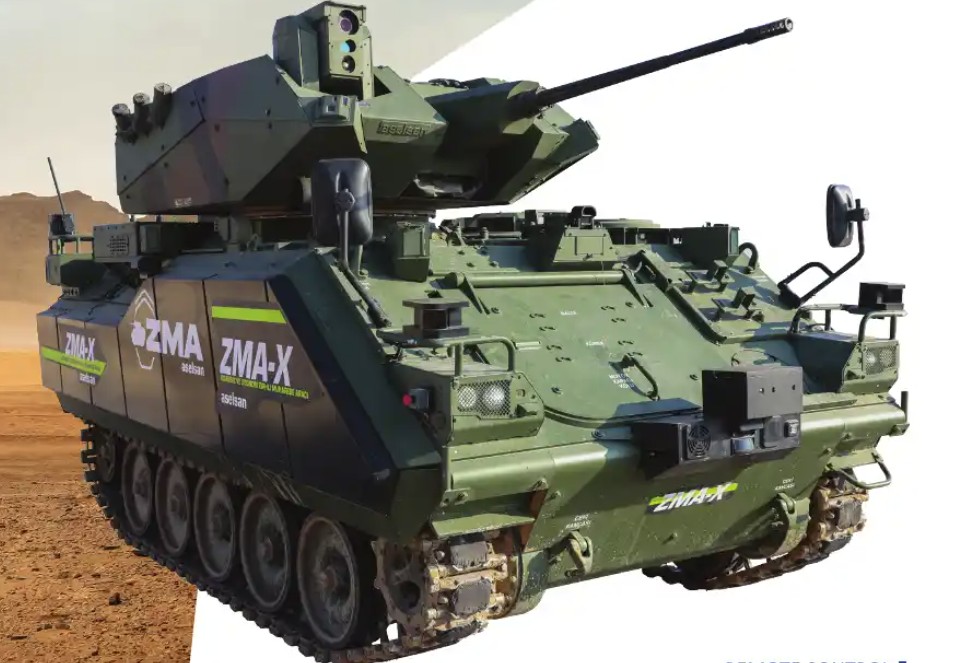

The ZMA-X Turkish Unmanned Ground Vehicle (UGV) is an autonomous and remote controlled armored combat vehicle converted from Turkish Army’s modernized ACV-15. It provides fire support with its SARP 100/25 unmanned and remotely controlled weapon system including 25 mm cannon. Manned use is still possible because of special architecture. ZMA-X is suitable for all terrains: slushy roads, deserts, asphalt, and stabilized road.
Ground Specifications
Mobility Type
Tracked
Main Weapon
25 mm cannon
Engine
Diesel
Max Speed
60.0 km/h
Range
400.0 km
System
Alternative Designation
ZMA-X
Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Aselsan
Configuration
Track
Crew
Unmanned
Communication
Wireless RF communication; GSM
Autonomy Features
Radars, lidars, ultrasonic sensors; Sensor fusion; Dynamic route planning; Day and night autonomous mobility capability
Main Features
Main Control Unit; Wayfinding; Human detection; Vehicle detection; Drive-by-wire system (steering wheel, braking, gas pedal, gear, air suction, fuel line, engine stop control lever, DbW main control unit, manned-unmanned shift panel); Remote Control Station for the vehicle platform; Remote Control Station for the unmanned SARP turret; Front and rear drive cameras; Peripheral 360° view cameras; Radar, rotating lidars, solid-state lidar, ultrasonic sensors; Emergency stop buttons
Dimensions
Length
5,300 mm
Width
2,850 mm
Height
2,900 mm
Weight, Combat
14,500 kg
Automotive
Engine Name
INA
Engine Type
Diesel
Engine Power
INA
Maximum Range
400 km
Maximum Speed
60 km/h
Amphibious
INA
Gap Crossing
180 cm
Side Slope
30%
Steep Slope
60%
Vertical Obstacle
70 cm
Main Weapon System
Note
Remotely-controlled and autonomous weapon station;
Stabilization: shooting moving targets and fire-on-the-move; Day and night surveillance; Automatic target tracking and ballistic calculation.
Main Weapon: KBA 25 mm automatic cannon
Secondary Weapon: 7.62 mm FN MAG58 / M240 / MKE
PMT-76Z Machine Gun; Laser range finder; Computer-based fire control functions; Ammunition feed under armor protection; Ammunition capacity
Protection
Armor
INA
Applique Armor
INA
Image Sources
Details
Country of Origin
Turkey
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
Z
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.3 m
Width
2.85 m
Height
2.9 m
Weight
14500 kg
Operators (1)
Turkey
