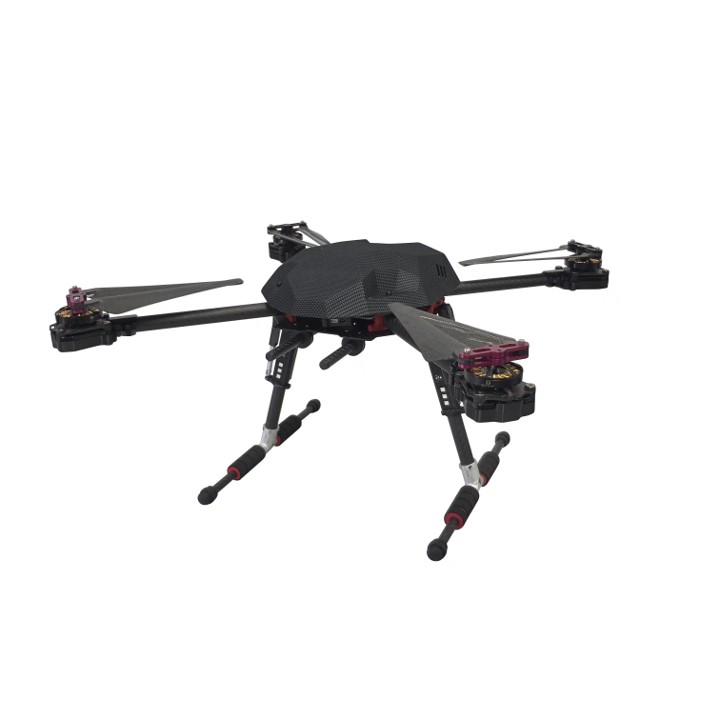

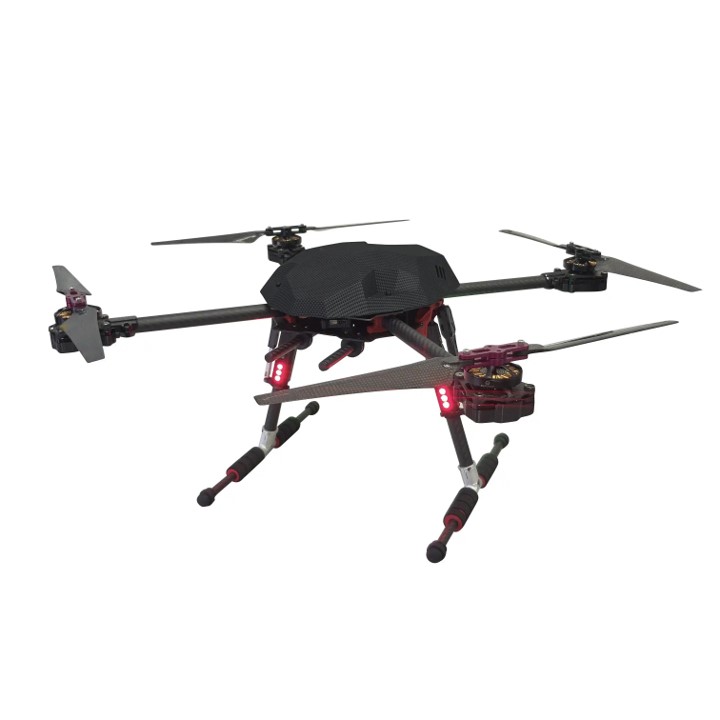

M400 Vietnamese Unmanned Aerial Vehicle (UAV)
M400
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
M400 Vietnamese Unmanned Aerial Vehicle (UAV)
Designation
M400
Alternate Designation
M400
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Institute of Technology Air Defense by the Vietnamese Ministry of Defense
Date of Introduction
2005
Description
The M400 Vietnamese Unmanned Aerial Vehicle (UAV) is a general-purpose, industrial-grade four-rotor Unmanned Aerial Vehicle platform designed for industrial inspections.
Air & Air Defense Specifications
Engine
Battery
Max Speed
72.0 km/h
Range
2.0 km
Endurance
28.00 hrs
Payload Capacity
1 kg
System
Alternate Designation
M400
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Institute of Technology Air Defense by the Vietnamese Ministry of Defense
Autonomy
Semi-Autonomous
Crew
Unmanned
Payload Capacity
1.2 kg
Reconnaissance Equipment
ClearCam Z10HD;
ClearCam Thermal;
ClearCam Z18HD;
ClearCam Z30HD
Operator Modes
First-person-view (FPV) mode;
Dual-operator mode
Software
1. Plex Pilot (Ground control system, now available on Google Play Store)
– Waypoint-based autonomous operation
– Mobile mission planning
– Automated flight logging
2. Garuda Plex Fleet Management
– Web-based mission planning
– Deployment planning
– Equipment management
– Drone team management
– Integration for CAAS permit application
Launching System
Vertical Take-Off and Landing (VTOL)
Recovery System
Vertical Take-Off and Landing (VTOL)
Dimensions
Length, Folded
501 mm
Wingspan, Folded
501 mm
Height, Folded
279 mm
Length, Unfolded
809 mm
Wingspan, Unfolded
809 mm
Height, Unfolded
279 mm
Maximum Takeoff Weight
3.8 kg
Automotive
Engine Name
INA
Engine Type
Lithium Polymer 6S
Engine Power
INA
Maximum Speed
72 km/h
Cruising Speed
INA
Service Ceiling
INA
Maximum Distance
2 km
Wind Resistance
up to 12 m/s
Endurance
28 min
Communications
Radio Control Link
2.4GHz ACCST with smart telemetry
Radio Control Link Range
2 km LOS
Telemetry Link
433MHz
Telemetry Link Range
2 km LOS
Video Link
5.8GHz
Link Channel Selection
Automatic
Image Sources
Notes
https://garuda.io/m400/;
Details
Country of Origin
Vietnam
Category
Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Air > Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Filter Label
M
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
—
Width
0.81 m
Height
0.28 m
Weight
3.8 kg
Operators (1)
Vietnam
