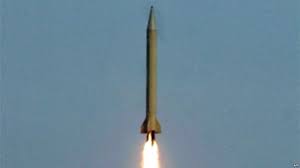

Shahab-3A Iranian Medium-Range Ballistic Missile

Meteor-3, Shooting Star-3, Shahab-3A

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Shahab-3A Iranian Medium-Range Ballistic Missile
Designation
Meteor-3, Shooting Star-3, Shahab-3A
Alternate Designation
Meteor-3, Shooting Star-3, Shahab-3A
Equipment Type
Manufacturer
Shahid Hemmat Industrial Group (SHIG)
Date of Introduction
2003
Description

The Shahab-3 (Persian: Šahâb 3‎; meaning "meteor") is a medium-range ballistic missile (MRBM) developed by Iran and based on the North Korean Nodong-1. The Shahab-3 has a range of 1,000 kilometers (620 mi); an MRBM variant can now reach 2,000 kilometers (1,200 mi) (and can hit targets as far as Israel, Egypt, Romania, Bulgaria, and Greece). It was tested from 1998 to 2003 and added to the military arsenal on 7 July 2003, with an official unveiling by Ayatollah Khamenei on July 20. With an accuracy of 140 m CEP, the Shahab-3 missile is primarily effective against large, soft targets (like cities). Given the Shahab-3’s payload capacity, it would likely be capable of delivering nuclear warheads. According to the IAEA, Iran in the early 2000s may have explored various fuzing, arming, and firing systems to make the Shahab-3 more capable of reliably delivering a nuclear warhead. The forerunners to this missile include the Shahab-1 and Shahab-2. The then-Iranian Defence Minister Admiral Shamkhani has denied that Iran plans to develop a Shahab-4. Some successors of the Shahab have longer ranges and are also more maneuverable. Operating under the Sanam Industrial Group (Department 140), which is part of the Defense Industries Organization of Iran, the Shahid Hemmat Industrial Group (SHIG), led the development of the Shahab missile. The US Air Force National Air and Space Intelligence Center estimates that fewer than 50 launchers were operationally deployed as of June 2017.

Air & Air Defense Specifications
Max Speed 8638.3 km/h
Range 1300.0 km
Variants
Emad Originated from: Iran Possessed by: Iran Class: Intermediate-Range Ballistic Missile (IRBM) Basing: Road-mobile Length: 16-16.5m Diameter: 1.25 to 1.38 m Launch weight: 19,000 kg Payload: 750 kg Warhead: Nuclear, chemical, HE, sub-munitions Propulsion: Liquid first-stage, liquid propelled Range: 1,700 km Status: Operational In service: 2015
Ghadr Originated from: Iran Possessed by: Iran Class: Intermediate-Range Ballistic Missile (IRBM) Basing: Road-mobile Length: 15.86m Diameter: 1.25 to 1.38 m Launch weight: 19,000 kg Payload: 800 kg Warhead: Nuclear, chemical, HE, submunitions Propulsion: Liquid first-stage, solid second-stage propellant Range: 1,950 km Status: Operational In service: 2007
System
Alternate Designation Meteor-3, Shooting Star-3, Shahab-3A
Basing Ground
Launch Platform(s) TEL or silo
Proliferation Not proliferated
Effective Range 1,300 km
Circular Error Probability 140 m
Dimensions
Length 16.6 m
Missile Weight 16,000 kg
Diameter 1.25 or 1.38 m
Fin Span INA m
Payload
Warhead Type Multiple or Single
Warhead Options Multiple: Five cluster munition warheads in new models, each warhead can target different destinations. Single: Nuclear, HE, chemical, or sub-munitions
Nuclear Yield INA
Conventional Warhead Weight 1,400 kg (280 kg each of 5 warheads)
Conventional Warheads Available Cluster munitions, HE, chemical, or sub-munitions
Multiple Independently targetable Reentry Vehicle (MIRV) Capable INA
Chemical Capable Yes
Propulsion Characteristics
Engine Single Stage
Propellant Liquid
Speed 2.4 km/s
Flight Ceiling 400 km
Fire Control
Guidance System Inertial navigation system
Details
Country of Origin Iran
Category Medium-Range Ballistic Missiles (MRBM) (1,001 km - 3,000 km)
Air > Medium-Range Ballistic Missiles (MRBM) (1,001 km - 3,000 km)
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
16.6 m
Width
1.25 m
Height
Weight
16000 kg
Operators (1)
Iran
