Shipunov 2A42 Russian 30mm Autocannon

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Shipunov 2A42 Russian 30mm Autocannon

Designation

—

Alternate Designation

—

Equipment Type

—

Manufacturer

—

Date of Introduction

1980

Description

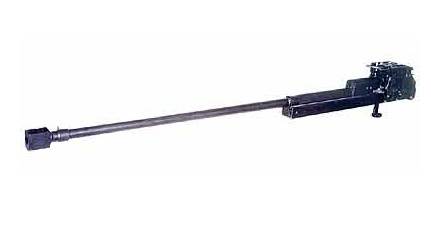

The Shipunov 2A42 is a Soviet/Russian 30 mm autocannon. It is built by the Tulamashzavod Joint Stock Company. The 2A42 is a late Cold War-era 30mm autocannon of Soviet origin. It was developed somewhere in the 1970s and was selected to arm the new BMP-2. The 2A42 autocannon significantly improved the lethality and combat range of the BMP-2 compared to the BMP-1 with its 73mm low-pressure cannon. The 2A42 has also been used on a variety of other platforms and its 30x165mm ammunition is used by various other Soviet autocannon. The 2A42 is a gas double belt feed gas-operated weapon. It is electrically powered and requires external power. The long barrel is rifled and has a double baffle muzzle brake. The rate of fire is selectable to low and high. Due to its significant recoil, the strength requirements on the mount are high. There are no variants of the 2A42, although the design of the newer lightweight 2A72 shares some design features.

Variants

2A42 standard version.

2A72 lighter simplified variant with a lower number of parts, a longer barrel, and higher muzzle velocity, but also a lower rate of fire.

ABM-M30M3 remote Weapon Station made by Impulse-2, for Uran-9 or different armored vehicles.

ABM-M30M3 Vikhr another remote weapon station made by Impulse-2.

TRT-30 remote weapon station.

System

Shipunov 2A42 30mm Autocannon

Name Shipunov 2A42

Type Autocannon

Caliber 30 mm

Design The 2A42 is a gas double belt feed gas-operated weapon. It is electrically powered and requires external power. The long barrel is rifled and has a double baffle muzzle brake. The rate of fire is selectable to low and high. Due to its significant recoil, the strength requirements on the mount are high. There are no variants of the 2A42, although the design of the newer lightweight 2A72 shares some design features.

Manufacturer Tulamashzavod

Length, Total 3.027 m

Length, Barrel 2,416 mm

Weight 115 kg

Action Gas operated, electrically powered

Barrels 1 ea

Recoil Force 30 to 50 kN

Cage Cooling Sleeve Yes

Muzzle Velocity 960 - 970 m/s

Elevation INA

Traverse 360 deg

Rate of Fire (Low) 200-300 rds/min

Rate of Fire (High) 550-800 rds/min

Feed System Belt fed, twin feed system, selectable feed

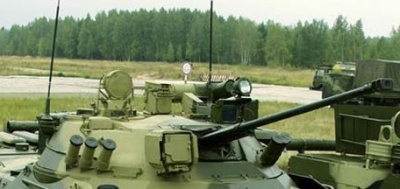

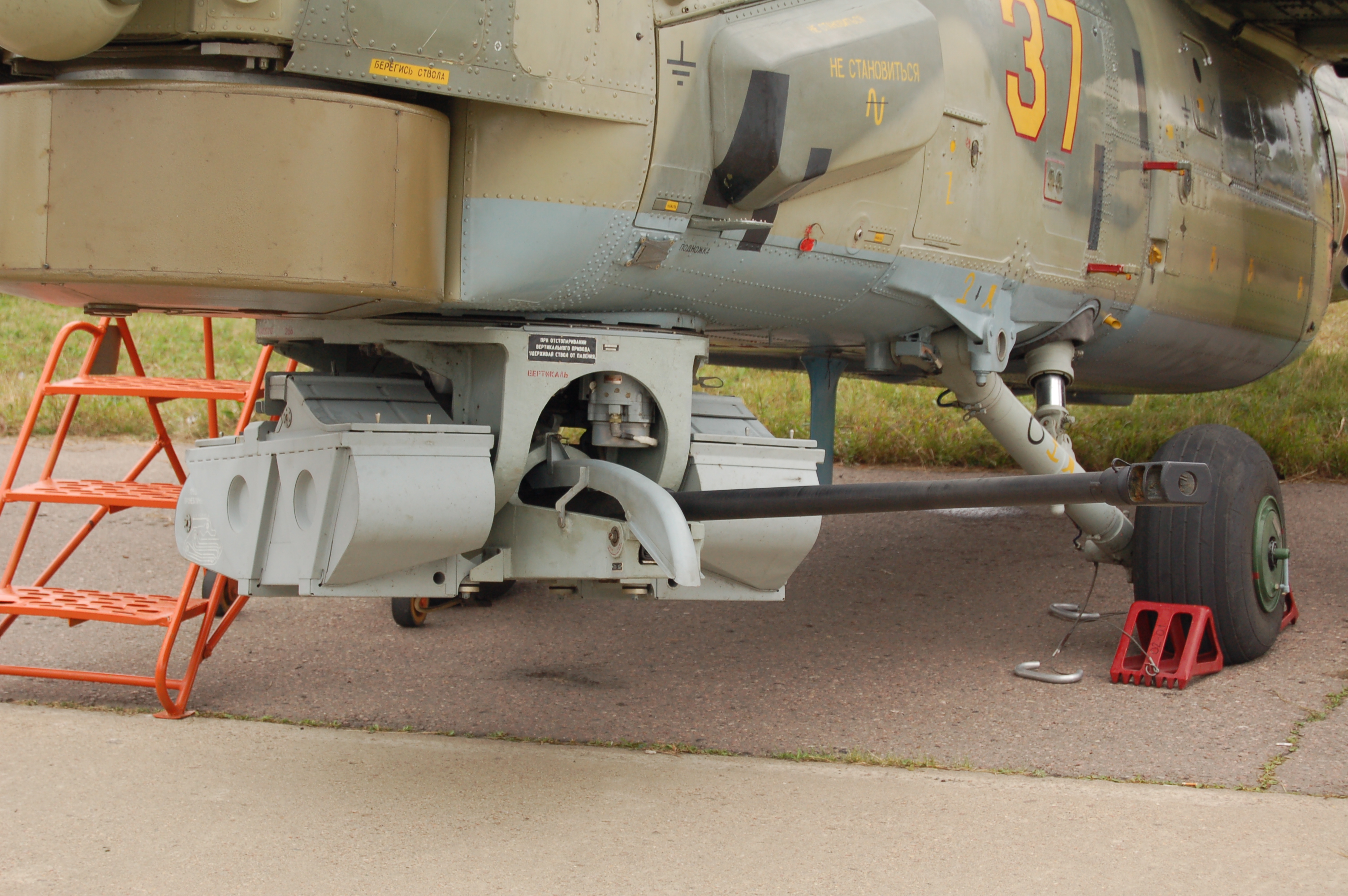

Platforms The main use of the 2A42 is as main armament of the BMP-2 mechanized infantry combat vehicle. Other vehicles that use the 2A42 are the BMD-2, BMD-3 and BTR-90. The 2A42 is also used on the Mi-28 Havoc and Ka-50 Hokum helicopters, making it one of the most powerful helicopter guns in use.

Ammunition (Option 1)

Type Armour Piercing Fin Stabilized Discarding Sabot with Tracer(APFSDS-T)

Caliber 30 mm

Muzzle Velocity 1,275 m/s

Maximum Effective Range 2,800 m

Min Range INA m

Armor Penetration Yes

Round Mass (Nominal) 675 g

Projectile Mass (Nominal) 220 g

Round Length 280 mm

Tracer 2.5

Cartridge Case Steel

Primer Percussion cap

Penetration at 1,000 >45mm RHA steel at 60° obliquity

Dispersion 0.45 Mils

Operational temperature -32°C to +62°C

Note The 2A42 fires the now common 30x165mm round that was specifically developed for this weapon. Several types of ammunition are available.

Ammunition (Option 2)

Type High Explosive Incendiary

USSR Designation UOF-84

Caliber 30 mm

Description Shell filled with 48,5g HEI, with A-670M fuze

Muzzle Velocity 960 m/s

Max Range 5,000 m

Min Range INA

Armor Penetration Yes

Weight, Bullet 0.39 kg

Image Sources

Notes https://www.imfdb.org/wiki/Shipunov_2A42; https://en.m.wikipedia.org/wiki/File:Autocanon_2A42_on_the_Mi28N_heli.JPG; https://russianmilitary.fandom.com/wiki/2A42_30mm_Automatic_Cannon;

Image Sources

Notes https://www.imfdb.org/wiki/Shipunov_2A42; https://en.m.wikipedia.org/wiki/File:Autocanon_2A42_on_the_Mi28N_heli.JPG; https://russianmilitary.fandom.com/wiki/2A42_30mm_Automatic_Cannon;

Details

Country of Origin Russia

Category Guns

Air > Guns

Classification

Domain

Air & Air Defense

Equipment Status

Active

Operators (7)

Russia

Ukraine

Kazakhstan

Kyrgyzstan

Tajikistan

Turkmenistan

Kurdistan
