CH-92 Chinese Unmanned Aerial Vehicle (UAV)
CH-92
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
CH-92 Chinese Unmanned Aerial Vehicle (UAV)
Designation
CH-92
Alternate Designation
CH-92
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
CASC
Date of Introduction
2016
Description

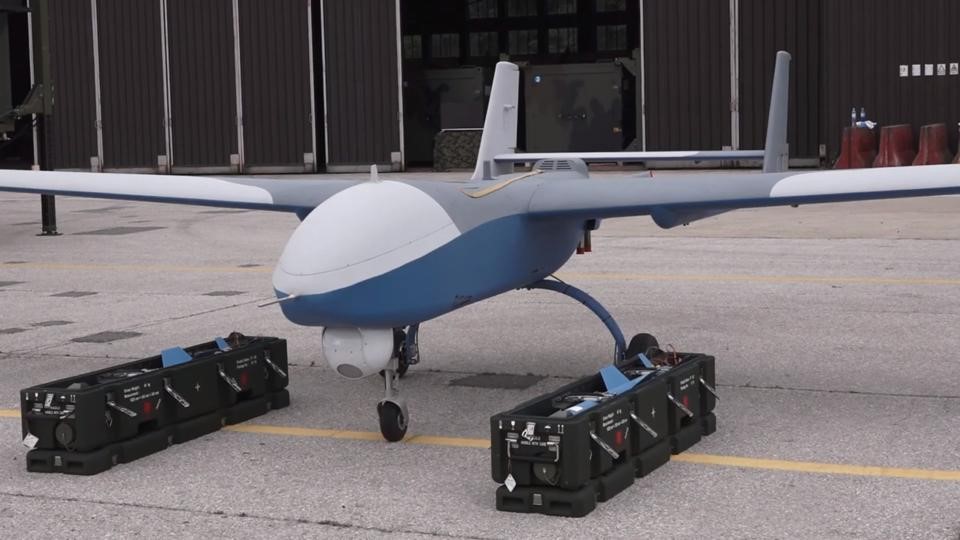

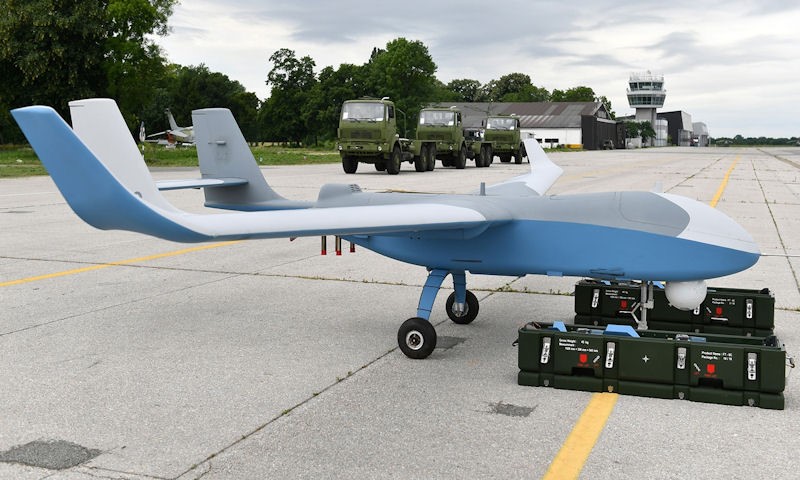

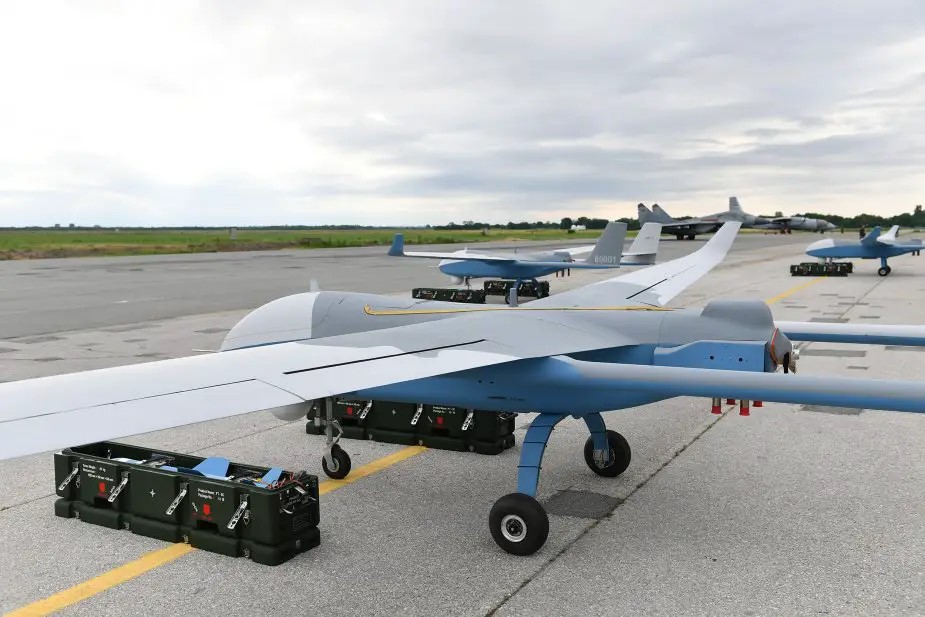

CH-92 is a fixed-wing UAV in a conventional layout with V-tail and tricycle landing gear. Propulsion is provided by a propeller driven by a pusher engine mounted at the empennage. CH-92 is mainly intended for reconnaissance and surveillance missions.
Air & Air Defense Specifications
Engine
cylinder gasoline engine (16 hp)
Max Speed
180.0 km/h
Range
250.0 km
Wingspan
4.40 m
Payload Capacity
20 kg
System
Alternate Designation
CH-92
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
China Aerospace Science and Technology (CASC) - China
Mission
The CH-92 was originally developed to fulfill general Intelligence-Surveillance-Reconnaissance (ISR) roles and artillery-spotting but has since been featured sporting two underwing hardpoints and supporting precision-guided / air-launched weapons.
Crew
Unmanned
Operator
1 ea
Payload Capacity
20 kg
Dimensions
Length
3.5 m
Wingspan
4.4 m
Height
1.4 m
Weight
INA
Maximum Takeoff Weight
110 kg
Automotive
Engine Name
INA
Engine Type
cylinder gasoline engine
Engine Power
power 16.4 kw, using twin - bladed thrust propeller
Fuel Capacity
INA
Maximum Speed
180 km/h
Cruising Speed
120-150 km/h
Maximum Altitude
5,000 m
Maximum Range
250 km
Endurance
INA
Deployment Time
INA
Recovery Time
INA
Armament
Note
If armed, the CH-92 is mounted with 2 x Anti-Tank Guided Missiles (ATGMs).
Details
Country of Origin
China
Category
UAVs
Air > UAVs
Filter Label
C
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
3.5 m
Width
4.4 m
Height
1.4 m
Weight
110 kg
Operators (2)
China
Serbia
