DT-10PM
DT-10PM
Tracked Armored Vehicles

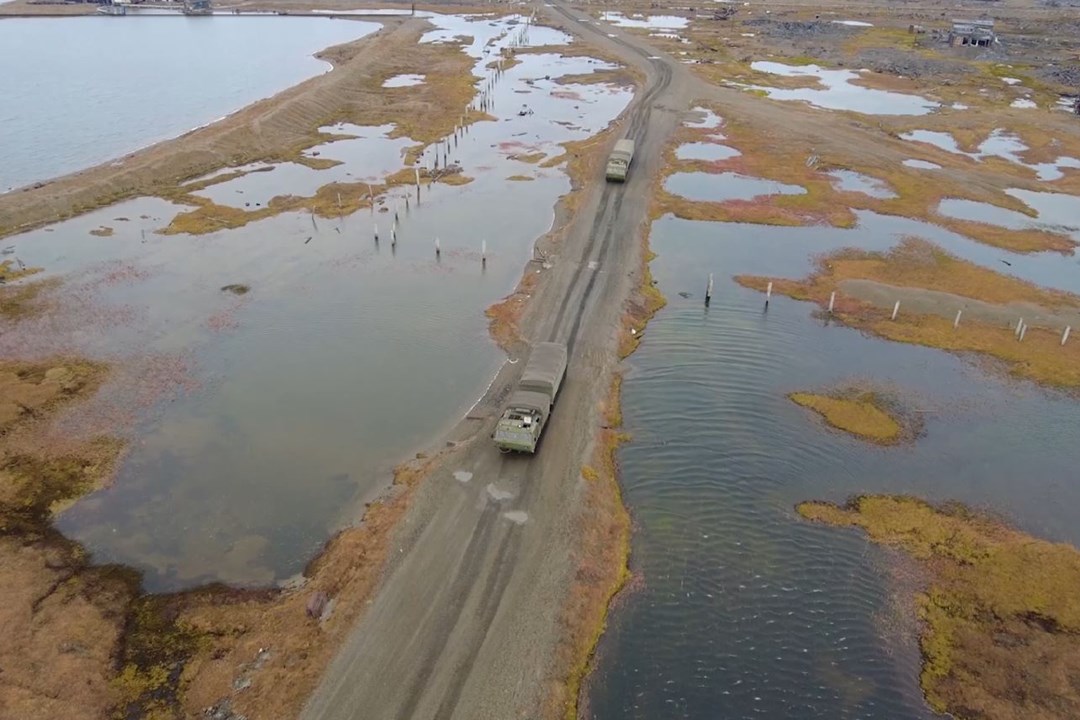

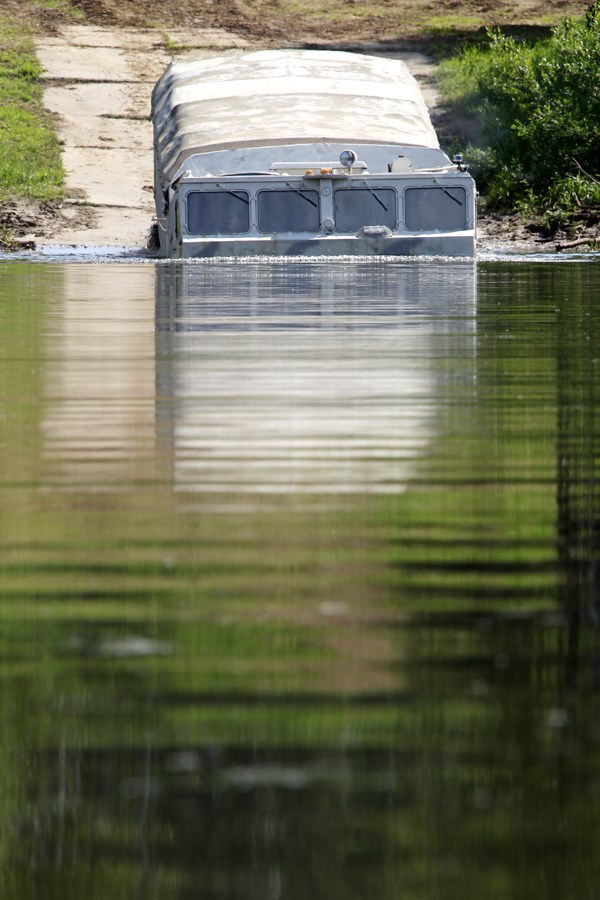

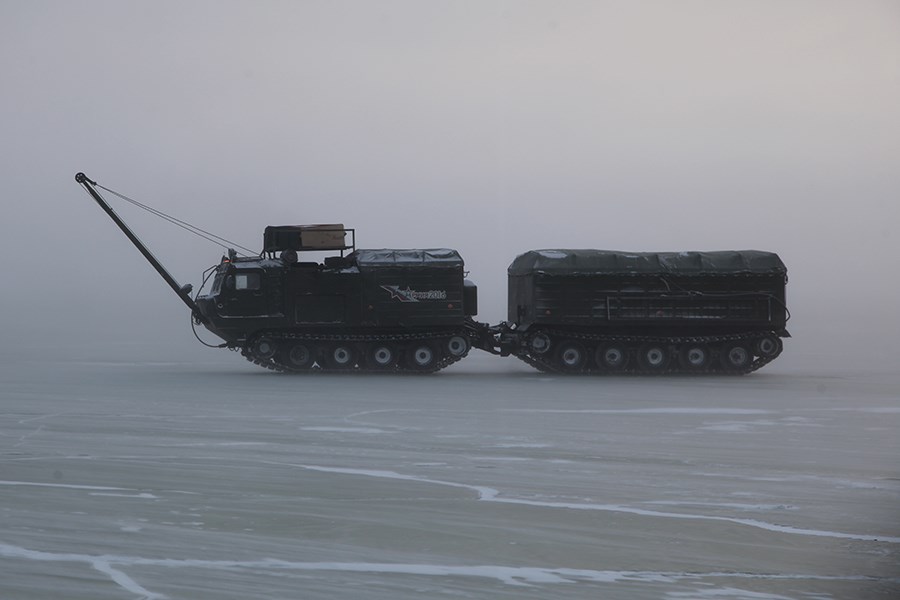

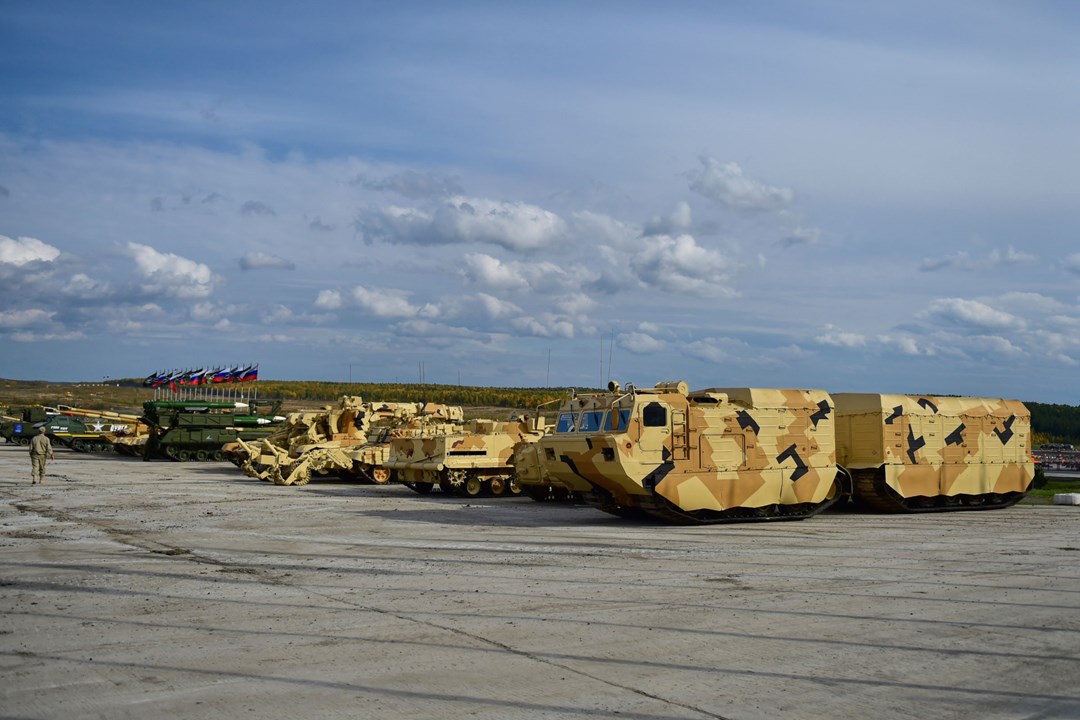

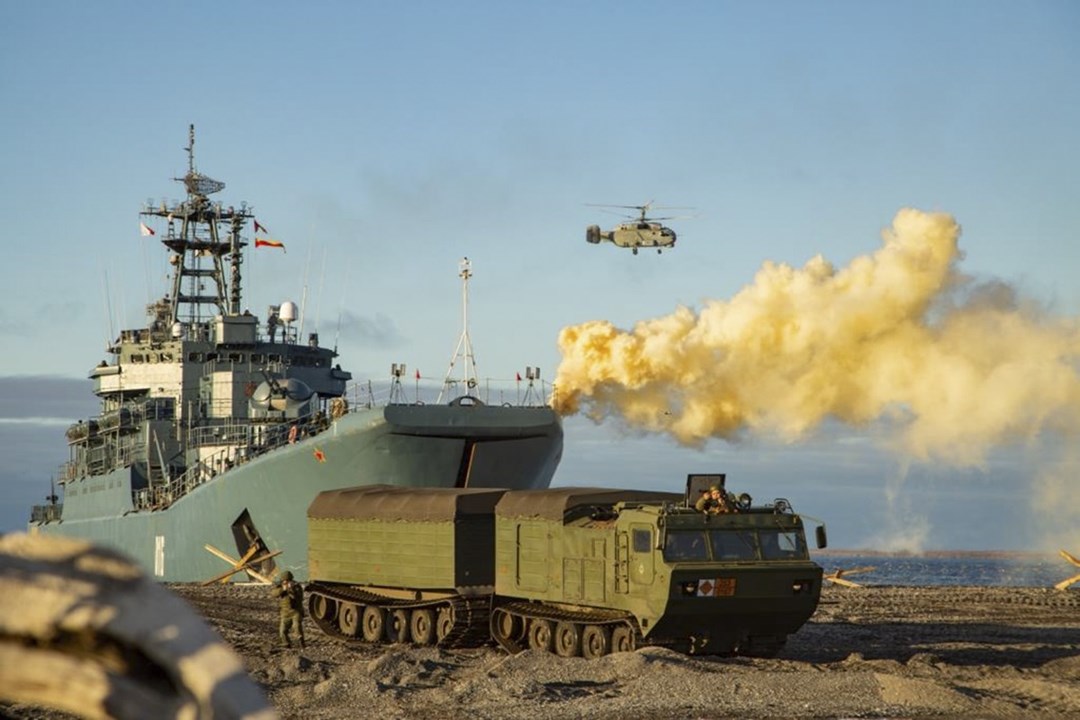

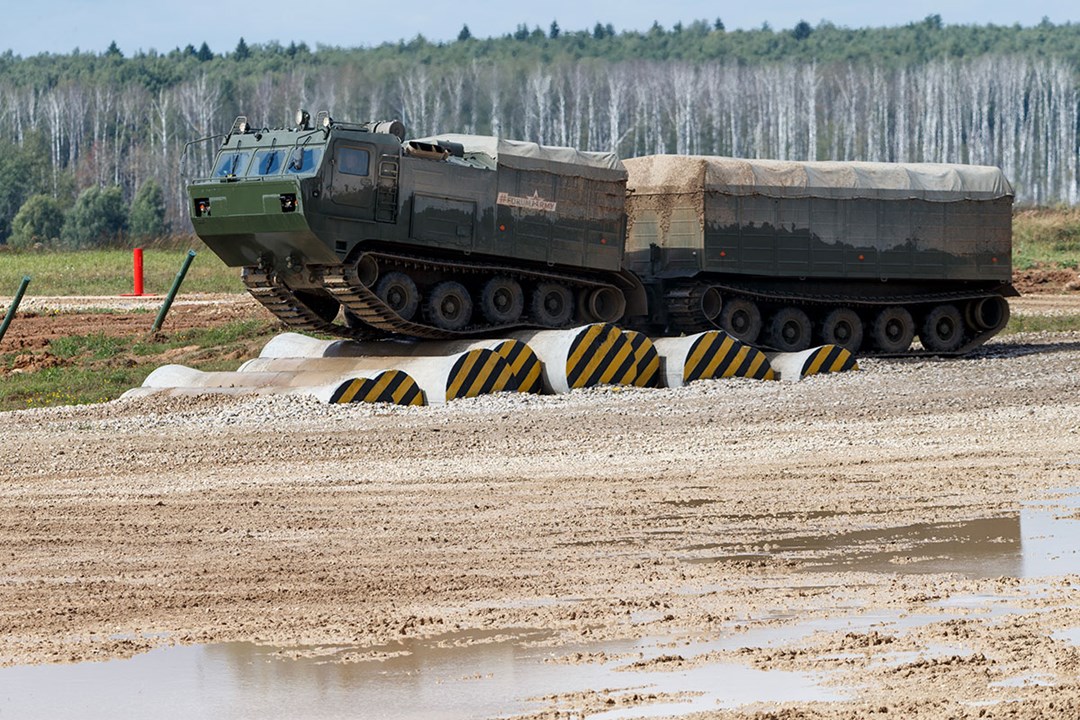

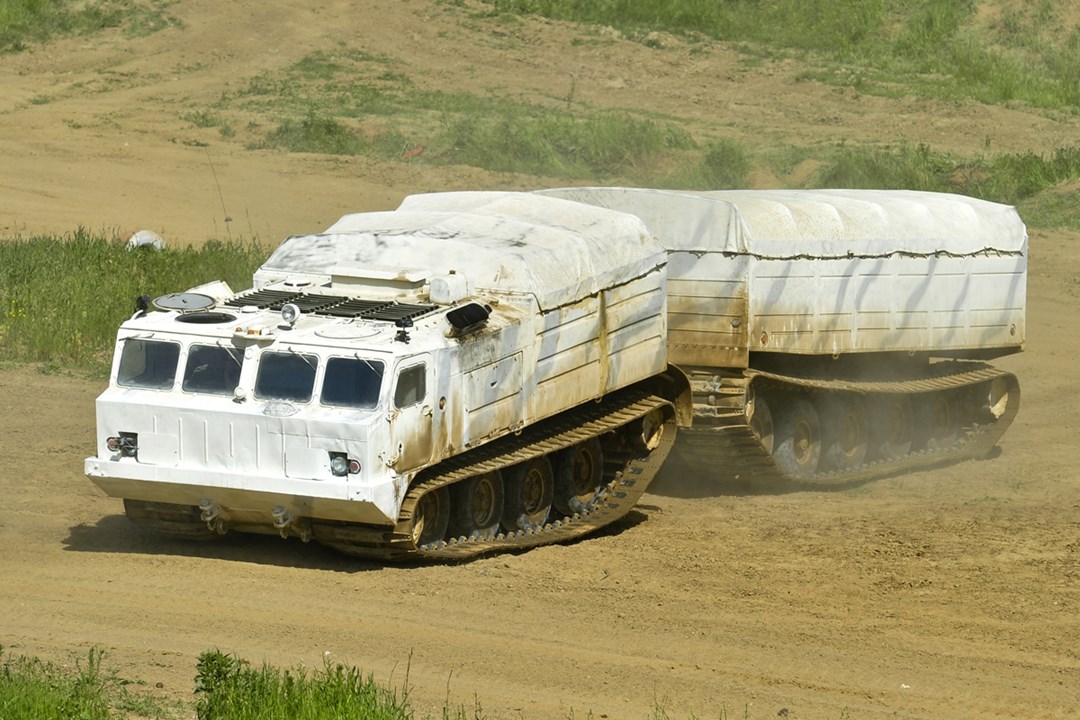

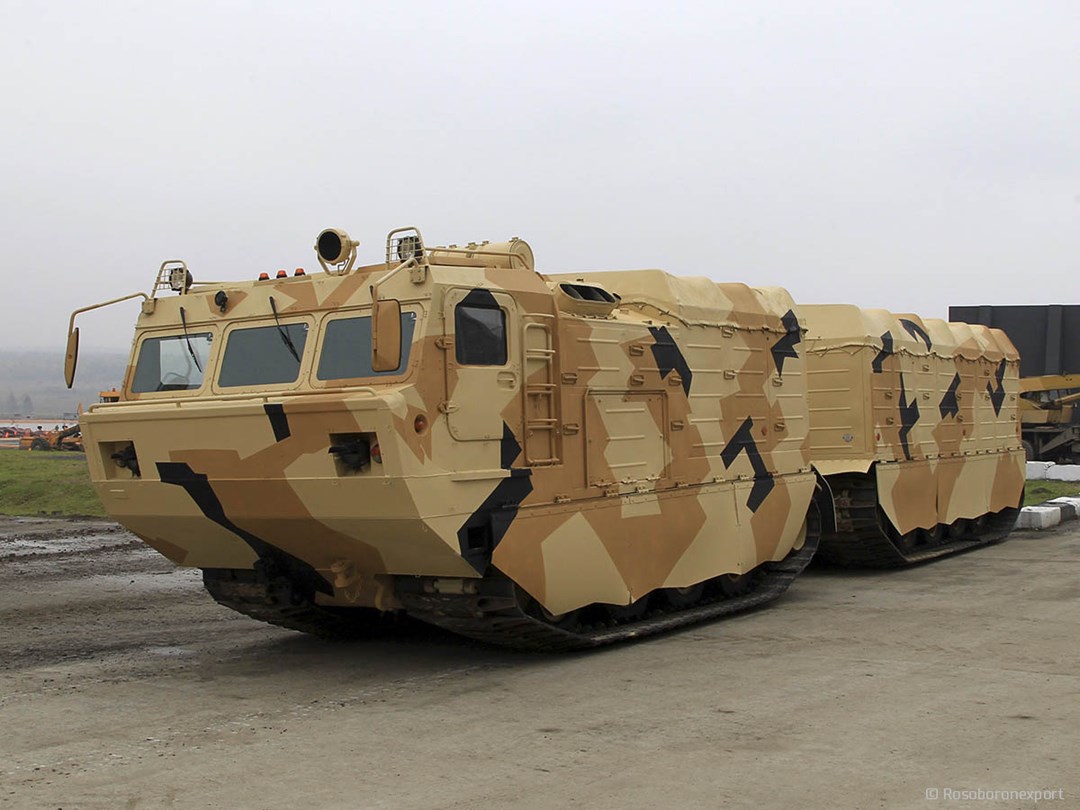

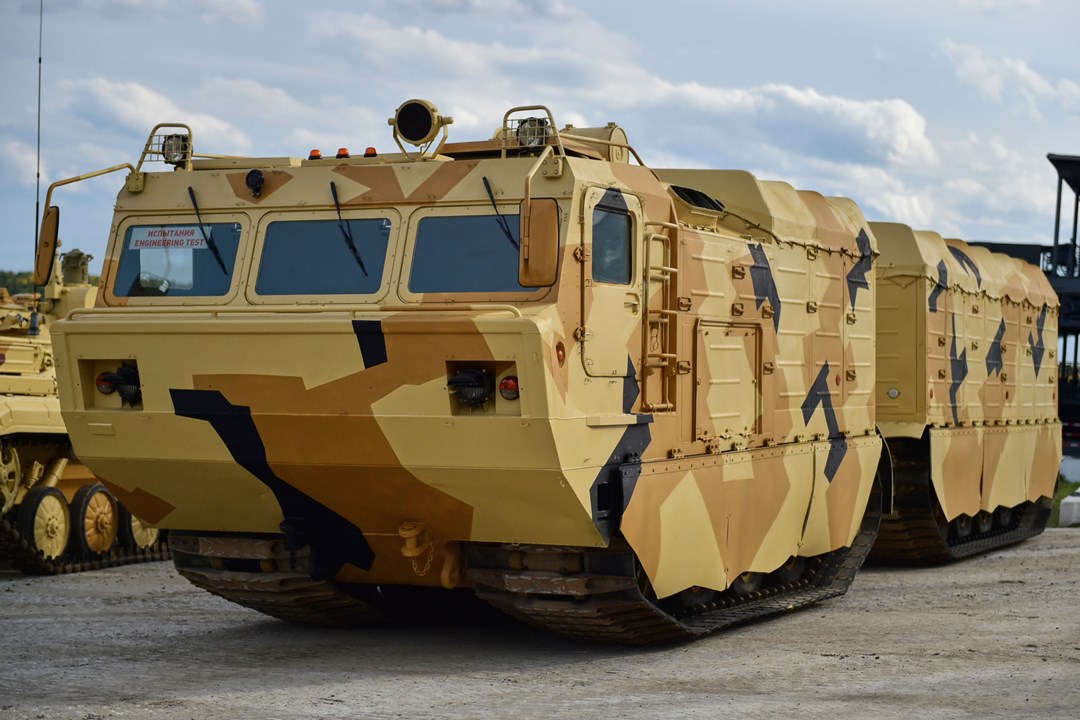

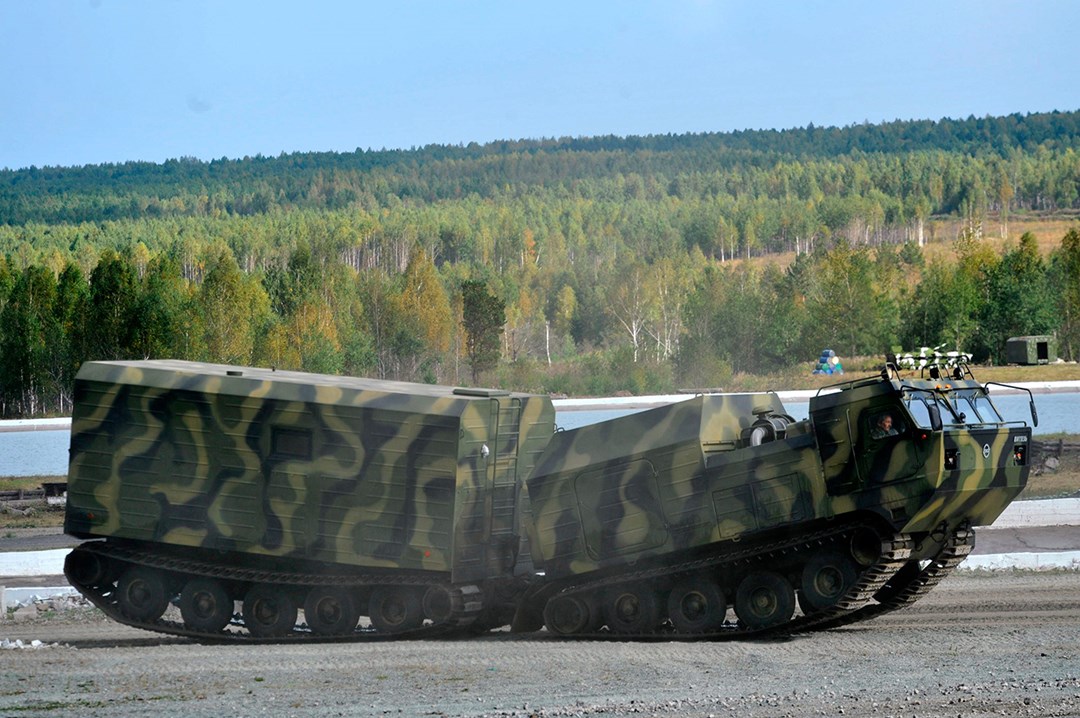

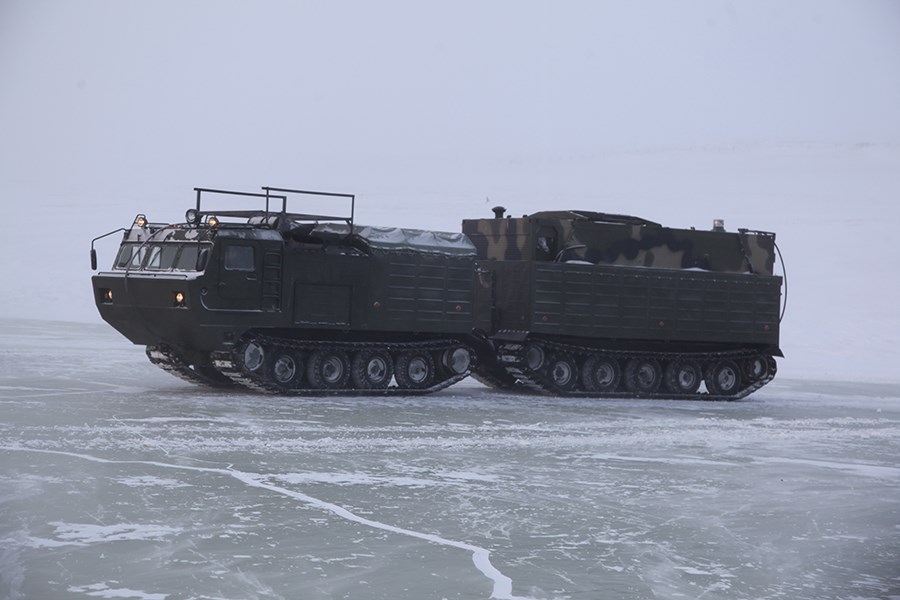

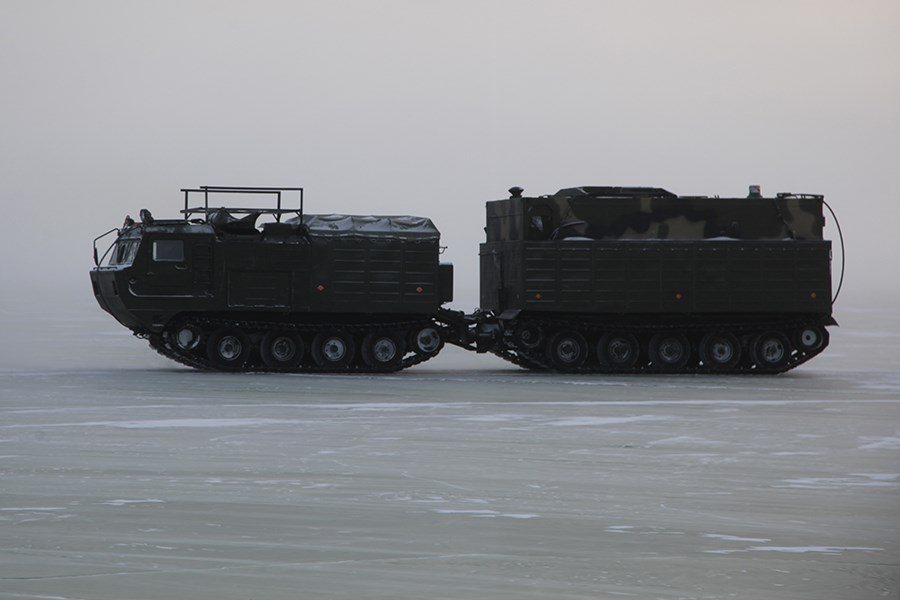

Operational Photo
Basic Information
Name
DT-10PM
Designation
DT-10PM
Alternate Designation
—
Equipment Type
Tracked Armored Vehicles
Manufacturer
Vityaz machine-building company
Date of Introduction
2010
Description
The DT-10PM is a medium, all-terrain, two-unit, amphibious tracked transporter capable of carrying a payload of up to ten tons across harsh terrain in extreme climates. The DT-10PM articulated vehicle is intended for transporting personnel, equipment and military hardware as well as mounting weapons and other military hardware. The first unit accommodates the power plant with transmission and a cabin while the second unit carries the cargo compartment. The DT-10PM tracked vehicle is powered by an 800-hp diesel engine allowing a top speed of 45 kilometers per hour on road and 6 kilometers per hour afloat. The vehicle has maximum range of 700 kilometers without refueling.
Ground Specifications
Max Speed
45.0 km/h
Range
700.0 km
Overview (Deagel)
Group
Tracked Armored Vehicles
Status
Active
Origin
Russia
Contractor
Vityaz machine-building company
Initial Operational Capability (IOC)
2010
Total Production
?
Specifications (Deagel)
Rolling Rubber Wheels
4
Dimensions — Length
14.4 meter
Dimensions — Track
2,000 millimeter
Dimensions — Width
3.1 meter
Mass — Empty Weight
28,000 kilogram
Mass — Payload
10,000 kilogram
Percentage — Gradient
70 %
Performance — Ditch Crossing Ability
3 meter
Performance — Max Range
700 kilometer
Performance — Step Climbing Ability
1.2 meter
Performance — Turning Radius
14.3 meter
Power — Power
800 hp
Pressure — Ground Pressure
0.22 kg/cm2
Speed — Top Speed
45 kph
Speed — Top Swimming Speed
6 kph
Details
Country of Origin
Russia
Sources
deagel.com: https://www.deagel.com/x/x/a003707
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
14.4 m
Width
3.1 m
Height
—
Weight
28000 kg
Operators (1)
Russia
