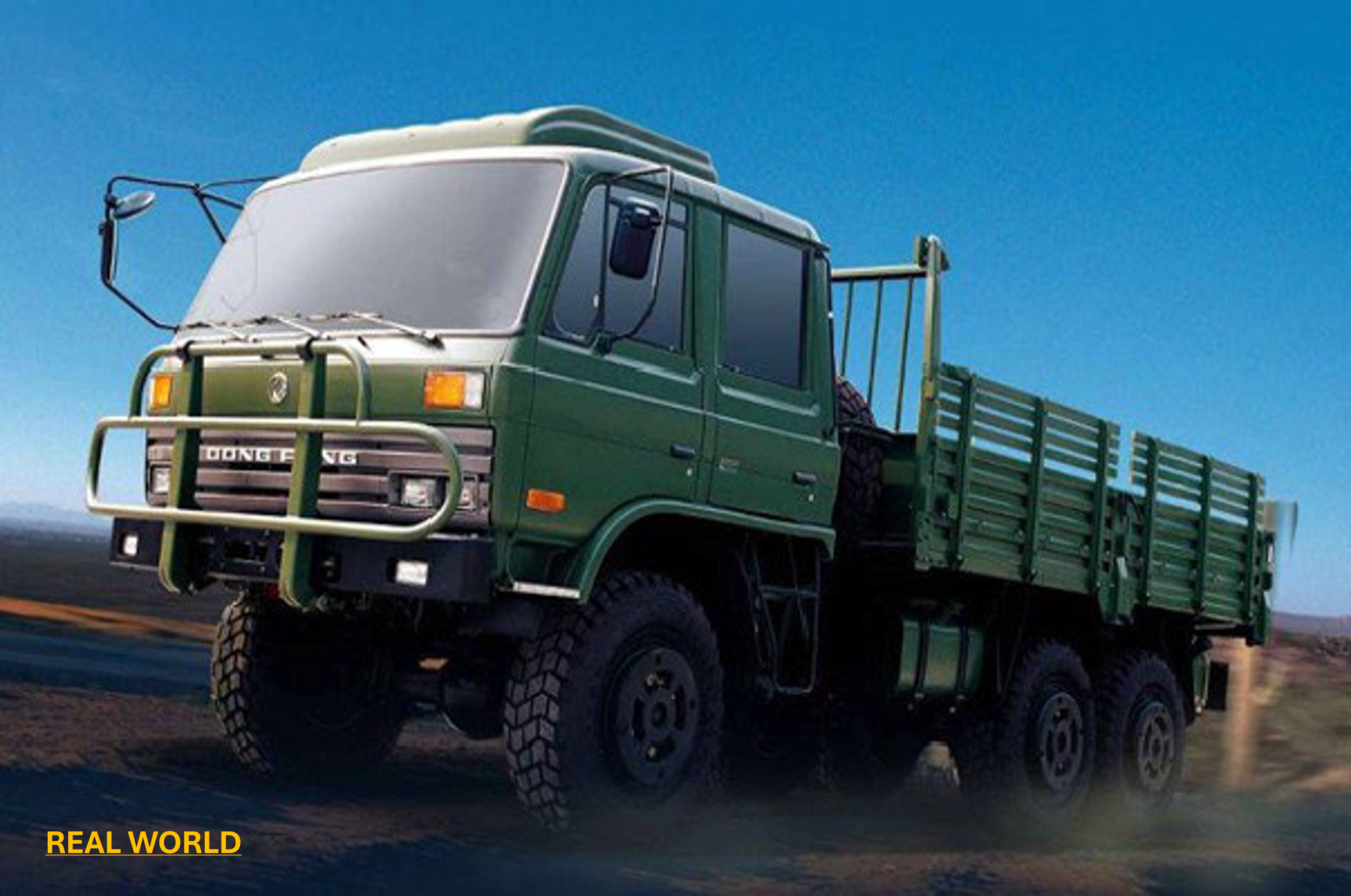

JPMRC VISMOD EQ2102 Chinese 6x6 Cargo Truck
EQ2102
3.5 ton capacity troop/cargo carrier truck
Other
Basic Information
Name
JPMRC VISMOD EQ2102 Chinese 6x6 Cargo Truck
Designation
EQ2102
Alternate Designation
EQ2102
Equipment Type
3.5 ton capacity troop/cargo carrier truck
Manufacturer
Dongfeng
Date of Introduction
1996
Description
The EQ2102 is a 3.5-ton capacity troop/cargo carrier truck developed and built by Dongfeng Motor Corporation and used by the People's Liberation Army of the People's Republic of China for transport. The car is a copied version of the Nissan Diesel Condor CM series. When in civilian use, this series of trucks use a variety of different names (from EQ1101 to EQ5108 depending on the version) but is usually referred to as the Dongfeng 145. A facelifted version is called the "160". It entered service in the 1990s to replace the aging CA-30 and the EQ245/EQ2100.
Ground Specifications
Crew
1
Mobility Type
Wheeled (6x6)
Engine
Diesel
Active Protection
None
Max Speed
90.0 km/h
Variants
1+4 (EQ2102)
INA
1+2 (EQ2102G)
INA
System
Alternative Designation
EQ2102
Type
3.5 ton capacity troop/cargo carrier truck
Manufacturer
Dongfeng Motor Corporation
Configuration
6x6
Crew
1 ea
Seating
1+4 (EQ2102); or 1+2 (EQ2102G)
Load
5,000 kg (road); 3,500 kg (cross-country)
Towed Load
4,800 kg
Dimensions
Length
7.498 m
Width
2.47 m
Height
3.240 m (with canvas and bow kit)
Weight, Without Winch
6,920 kg
Weight, With Winch
7,120 kg
Wheelbase
3,475 mm / 1,250 mm
Ground Clearance
305 mm
Automotive
Engine Name
INA
Engine Type
Diesel
Engine Power
INA
Range
INA
Speed, Maximum Road
90 km/h
Speed, Average Cross
INA
Speed, Maximum Swim
Not Amphibious
Main Weapon System
Note
There are no crew-served weapons mounted on the Dongfeng EQ2102 Chinese 6x6 Cargo Truck
Protection
Armor
INA
Applique Armor
No
Active Protection System
No
Mine Clearing
No
NBC Protection
INA
Smoke Equipment
INA
Details
Country of Origin
China
Category
Transportation
Land > Combat Support Vehicles > Transportation
Filter Label
J
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.5 m
Width
2.47 m
Height
3.24 m
Weight
6920 kg
Operators (2)
China
Myanmar
