MiG-25 (Foxbat) Russian Interceptor and Strike-Reconnaissance Aircraft

MiG-25, NATO Designation: "Foxbat"

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
MiG-25 (Foxbat) Russian Interceptor and Strike-Reconnaissance Aircraft
Designation
MiG-25, NATO Designation: "Foxbat"
Alternate Designation
MiG-25, NATO Designation: "Foxbat"
Equipment Type
Manufacturer
Date of Introduction
1970
Description

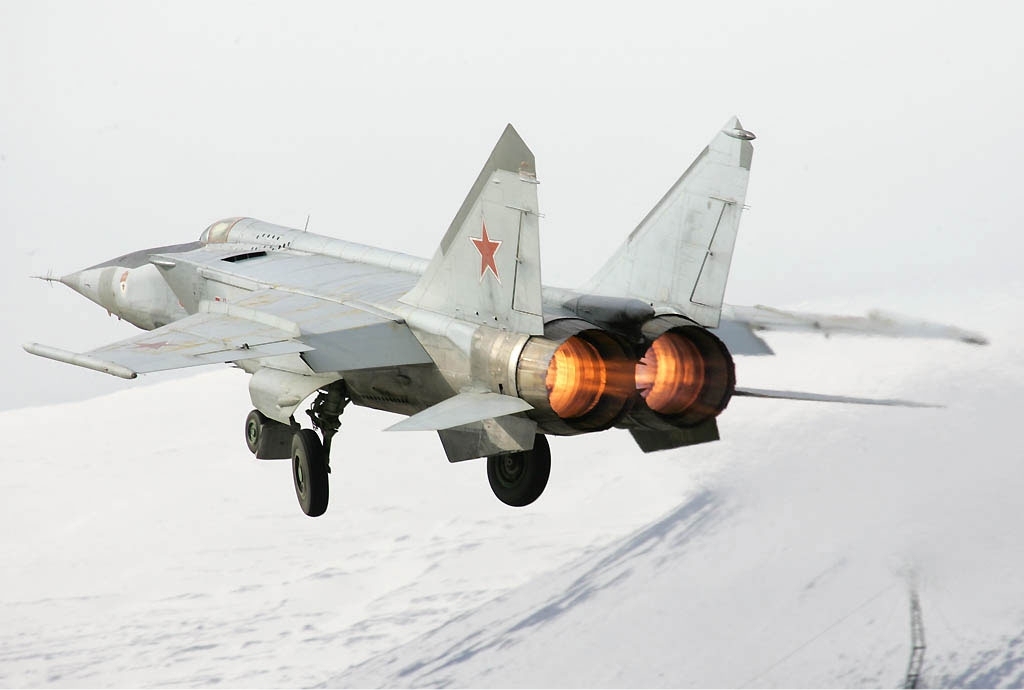

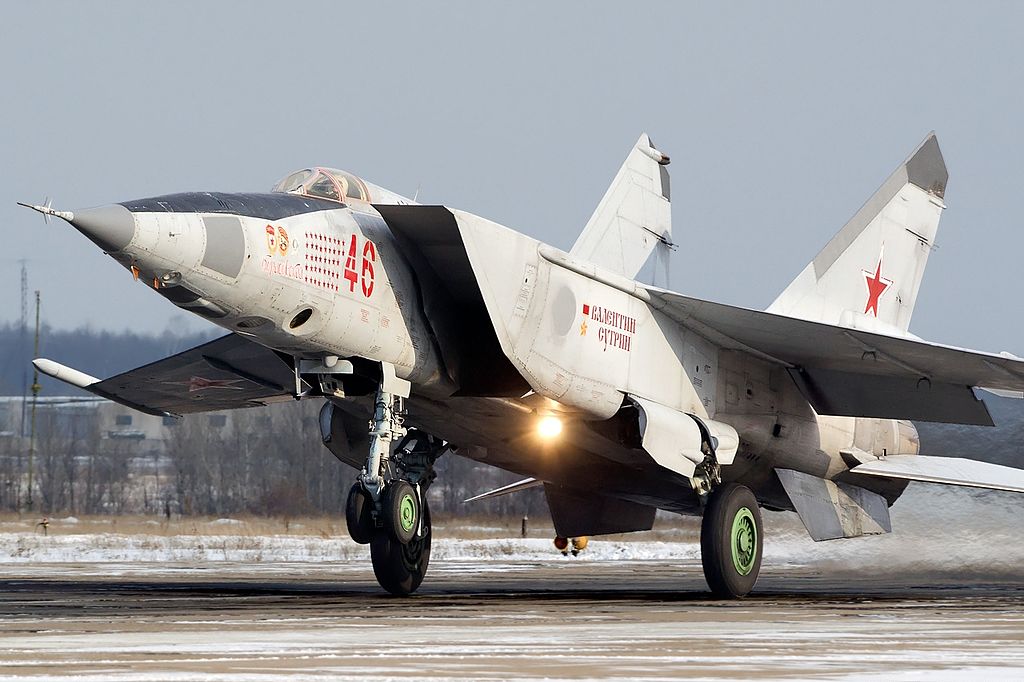

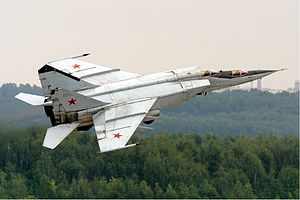

The Mikoyan-Gurevich MiG-25 (Russian: Микоян и Гуревич МиГ-25; NATO reporting name: Foxbat) is a supersonic interceptor and reconnaissance aircraft that was among the fastest military aircraft to enter service. It was designed by the Soviet Union's Mikoyan-Gurevich bureau and is one of the few combat aircraft built primarily using stainless steel. It was the last plane designed by Mikhail Gurevich before his retirement. The first prototype flew in 1964, and the aircraft entered service in 1970. It has an operational top speed of Mach 2.83 (Mach 3.2 is possible but at risk of significant damage to the engines) and features a powerful radar and four air-to-air missiles. When first seen in reconnaissance photography, the large wing suggested an enormous and highly maneuverable fighter, at a time when U.S. design theories were also evolving towards higher maneuverability due to combat performance in the Vietnam War. The appearance of the MiG-25 sparked serious concern in the West and prompted dramatic increases in performance for the McDonnell Douglas F-15 Eagle then under development in the late 1960s. The capabilities of the MiG-25 were better understood in 1976 when Soviet pilot Viktor Belenko defected in a MiG-25 to the United States via Japan. It turned out that the aircraft's weight necessitated its large wings. Production of the MiG-25 series ended in 1984 after completion of 1,186 aircraft. A symbol of the Cold War, the MiG-25 flew with Soviet allies and former Soviet republics, remaining in limited service in several export customers. It is one of the highest-flying military aircraft, one of the fastest serially produced interceptor aircraft, and the second-fastest serially produced aircraft after the SR-71 reconnaissance aircraft that was built in very small series compared to the MiG-25. As of 2018, the MiG-25 remains the fastest manned serially produced aircraft in operational use and the fastest plane that was offered for supersonic flights and edge-of-space flights to civilian customers.

Air & Air Defense Specifications
Crew 1
Wingspan 14.01 m
Variants
MiG-25P "Foxbat-A" Interceptor Single-seat all-weather interceptor fighter aircraft, powered by two Tumansky R-15B-300 turbojet engines, fitted with RP-25 Smerch-A1 radar and armed with four R-40 air-to-air missiles.
MiG-25RB "Foxbat-B" Strike-Reconnaissance Aircraft Single-seat high-altitude daylight reconnaissance aircraft, fitted with improved reconnaissance suite and a Peleng automatic bombing system. The aircraft can carry a bombload of eight 500 kg (1,100 lb) bombs.
System
Alternative Designation MiG-25, NATO Designation: "Foxbat"
Crew 1.0
Weight, Empty 20,000.0 kg
Weight, Normal Takeoff 35,060.0 kg
Weight, Maximum Gross 36,720 kg
Service Ceiling 20,700 m
Power Plant/Engine 2 x Soyuz/ Tumansky R-15BD-300 turbojet (24,692 lbs. thrust with afterburner)
Speed, Cruising 2,500 km/h
Speed, Landing 360 km/h
Speed, Maximum (at altitude) 3,000 km/h
Speed, Maximum (low or sea level) 1,200 km/h
Dimensions
Length 23.82 m (78 ft 2 in)
Wingspan 14.01 m (46 ft 0 in)
Height 6.1 m (20 ft 0 in)
Wing Area 61.4 sq m (661 sq ft)
Armament
Hardpoint/Weapon Station 1
Location wing
Quantity 4.0 ea
Hardpoint/Weapon Station 2
Location fuselage
Quantity 6.0 ea
Mixed Ordnance 1
Combat Load 4.0 rds
Name AA-6 ACRID
Type AAM
Mixed Ordnance 2
Combat Load 4.0 rds
Name AA-7
Type AAM
Mixed Ordnance 3
Combat Load 2 and 4 rds
Name AA-6 ACRID w/ AA-8 APHID/AA- 11 ARCHER
Type AAM
Mixed Ordnance 4
Combat Load 2 and 4 rds
Name AA-7 APEX w/ AA-8 APHID/AA-11 ARCHER
Type AAM
Avionics / Sensors / Optics
Radar RP-25 (Smerch A-4) radar based on vacuum tube electronics, for early MiG-25P. RP-25MN (Saphir-25) radar based on semiconductor electronics, for later variants.
Radar Altimeter Yes, RV-4 Radar Altimeter
Details
Country of Origin Russia
Category Reconnaissance
Air > Reconnaissance
Filter Label
M
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
7.26 m
Width
Height
1.86 m
Weight
35060 kg
Operators (6)
Russia
Ukraine
Algeria
Azerbaijan
Libya
Syria
