P-40 (Long Track) Russian Mobile 3-D UHF Radar System
P-40

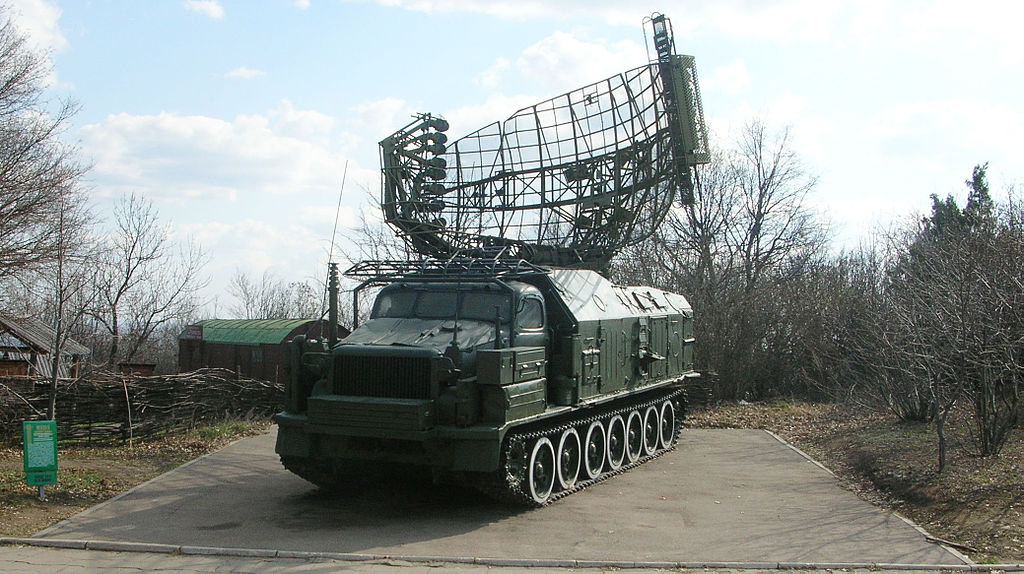

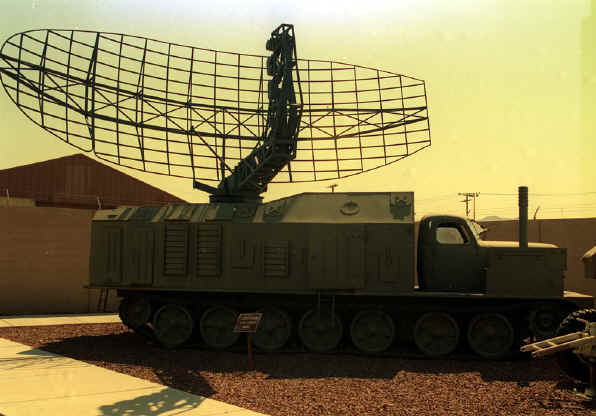

The P-40 was the first high-mobility radar to enter into service with the then new tactical anti-aircraft forces of the Soviet armed forces. The P-40 used the AT-T artillery tractor with tracked chassis, fitted with a 12-cylinder 4-stroke diesel engine with an output of 342 kW (465 hp) and producing a top speed of 55 km/h. The P-40 had a crew of 6 and a total weight of 35 tons, the radar being powered by a gas turbine running 400 Hz generator. The radar uses an open frame truncated parabolic antenna with a stacked antenna feed. The radar antenna is mounted on the truck used to transport it giving excellent mobility, the radar capable of being folded for stowage during transit. Azimuth was determined by mechanical scanning while the angle of the target is determined from within which beam of the antenna stack the target is detected, the radar does not carry a secondary antenna for IFF.
