Smart Eye

Smart Eye

Surveillance & Reconnaissance Airplanes
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Smart Eye
Designation
Smart Eye
Alternate Designation
Yabhon Smart Eye
Equipment Type
Surveillance & Reconnaissance Airplanes
Manufacturer
ADCOM Systems
Date of Introduction
2012
Description

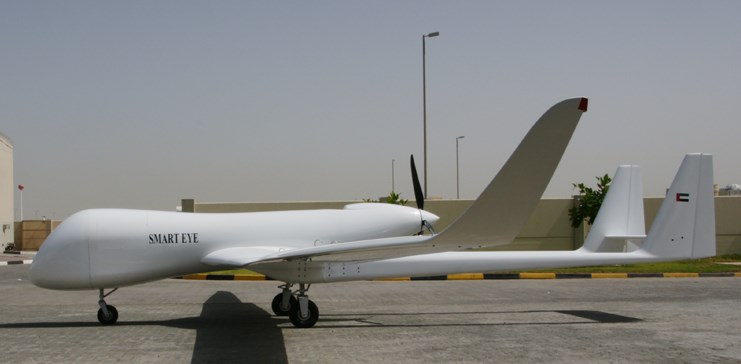

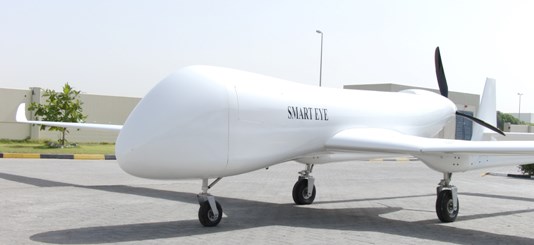

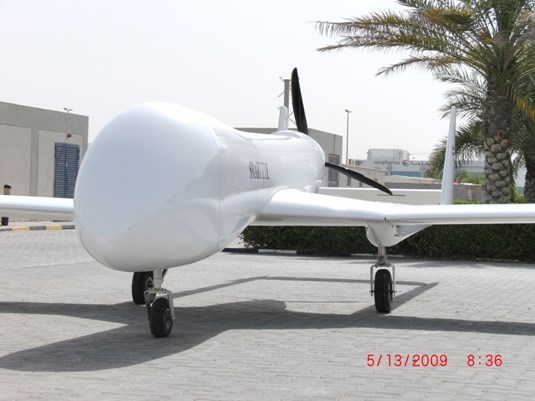

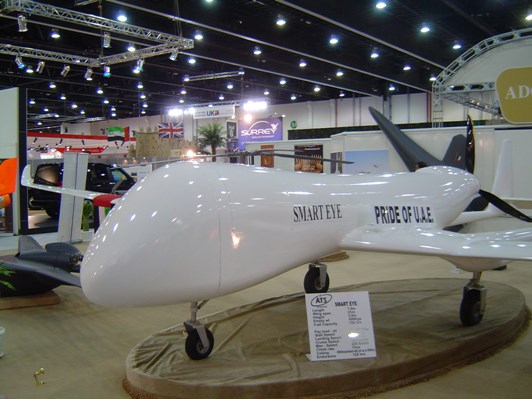

The ADCOM Systems Yabhon Smart Eye is a medium altitude, long endurance (MALE) unmanned aircraft system (UAS) featuring a flight endurance of up to 120 hours. The Smart Eye MALE is suitable for: near real-time combat assessment; battle damage assessment (BDA); intelligence, surveillance and reconnaissance (ISR); support of humanitarian aid; border security; and communications relay missions. The 1,000-kg class aircraft can be fitted with an ADFLIR electro-optical pod or a Synthetic Aperture Radar (SAR). The aerodynamic configuration includes a long wing with enhanced gliding capabilities, a twin-tail and a tail-mounted propeller developing up to 115-hp of power. The three-bade propeller allows a cruise speed of 65-to-130 kilometers per hour and maximum speed of 222 kilometers per hour.

Air & Air Defense Specifications
Max Speed 222.0 km/h
Service Ceiling 7300 m
Wingspan 21.00 m
Overview (Deagel)
Group Surveillance & Reconnaissance Airplanes
Status Active
Also Known As Yabhon Smart Eye
Origin United Arab Emirates
Contractor ADCOM Systems
Initial Operational Capability (IOC) 2012
Total Production ?
Specifications (Deagel)
Crew 0
Number of Engines 1
Propeller Blades 3
Dimensions — Height 2 meter
Dimensions — Length 7 meter
Dimensions — Wingspan 21 meter
Mass — Empty Weight 450 kilogram
Mass — Max Takeoff Weight 1,000 kilogram
Mass — Payload 550 kilogram
Performance — Ceiling 7,300 meter
Power — Max Power at TakeOff 115 hp
Speed — Cruise Speed 130 kph
Speed — Stall Speed 55 kph
Speed — Top Speed at High Altitude 222 kph
Time — Flight Endurance 120 hour
Volume — Fuel Tank Capacity 900 liter
Gear (Deagel)
Item 1 Optronic Systems: ADFLIR GSP (1)
Details
Country of Origin United Arab Emirates
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
7 m
Width
21 m
Height
2 m
Weight
1000 kg
Operators (1)
United Arab Emirates
