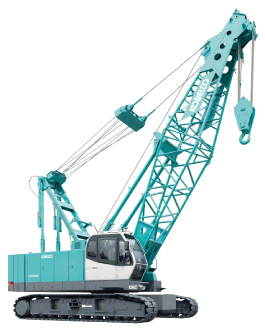

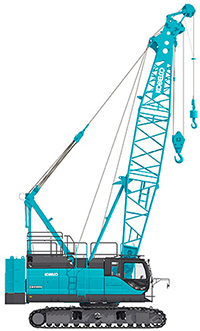

Kobelco CKE800 American 80 Ton Hydraulic Crawler Crane

CKE800

Hydraulic Crawler Crane

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Kobelco CKE800 American 80 Ton Hydraulic Crawler Crane

Designation

CKE800

Alternate Designation

CKE800

Equipment Type

Hydraulic Crawler Crane

Manufacturer

Kobelco

Date of Introduction

2018

Description

The CKE800 crawler crane from KOBELCO takes advantage of new technologies to raise performance to new heights. Winches with extremely powerful line-pull handle the toughest jobs, while the innovative “wettype” multi-disc braking system provides safe and sure control with minimal maintenance. A large winch capacity promotes ultra-smooth operation and enhanced component service life. An optional full-sized third winch enables the use of an impressive selection of attachments. Add these new features to the renowned power and reliability of KOBELCO cranes, and you have the ideal combination of lifting performance, economical operation and durability. For more information go the the following website: http://www.kobelco-cranes.com/en/wp-content/themes/kobelco/pdf/hydraulic/CKE800_SPEC.pdf

Ground Specifications

Crew 1

Mobility Type Tracked

Engine Diesel (159 hp)

Max Speed 1.2 km/h

System

Alternative Designation CKE800

Type Hydraulic Crawler Crane

Manufacturer Kobelco

Crew 1 ea

Main Boom, Maximum Lifting Capacity 80 t/3.0 m

Main Boom, Maximum Length 54.9 m

Fixed Jib Maximum Lifting Capacity 6.6 t

Fixed Jib, Maximum Combination 42.7 m + 18.3 m, 45.7m + 12.2m

Dimensions

Length, Base Machine + Boom Base + Crawler 11,640 mm

Width, Base Machine + Boom Base + Crawler 3,390 mm widtd

Height, Base Machine + Boom Base + Crawler 3,300 mm height

Weight, Base Machine + Boom Base + Crawler 40,770 kg

Length, Upper Boom 1,510 mm

Width, Upper Boom 4,545 mm

Length, Lower Boom 5,350 mm

Width, Lower Boom 1,510 mm

Basic Bloom Length 9.1 m

Operating Weight Approx. 73.8 t

Counter Weight 25.8 t (upper) + 6.8 t (lower)

Transport Weight 39.9 t (Main machine with crawler and lower boom)

Ground Pressure 88 kPa (0.9 kgf/cm2)

Automotive

Engine Name Mitsubishi 6D16-TLU2K

Engine Type Diesel

Engine Power 159 kW/2,000 min-1 (rpm)

Fuel Tank Capacity 400 liters

Swing Speed 4.0 min-1 (rpm)

Travel Speed 1.2 km/h

Hydraulic System

Main Pumps 3 variable displacement

Maximum Pressure 32 MPa (325 kgf/cm2)

Hydraulic Tank Capacity 450 liters

Self-Erection Device Standard counterweight removal

Main and Auxiliary Winch

Maximum Line Speed 120 m/min (1st layer)

Rated Line Pull 78.5 kN (8 tf

Maximum Line Pull 150 kN (15.3 tf)

Wire Rope 22 mm

Length, Wire Rope 215 m (Main) 125 m (Aux.)

Brake Type Wet-type multiple disc brake

Protection

Hull Armor INA

Applique Armor No

Mine Clearing No

NBC Protection INA

Smoke Equipment INA

Image Sources

Notes https://www.lectura-specs.com/en/model/cranes/crawler-cranes-lattice-boom-kobelco/cke-600-1007683;

Details

Country of Origin United States

Category Mobility

Land > Combat Support Vehicles > Mobility

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

11.64 m

Width

3.39 m

Height

3.3 m

Weight

40770 kg
