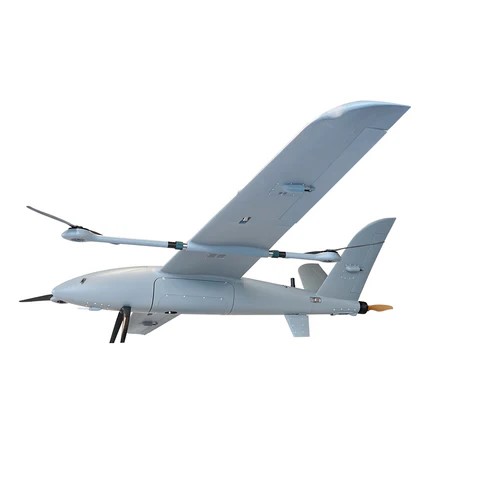

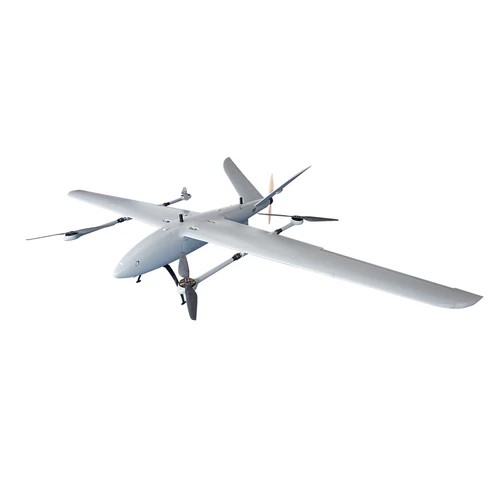

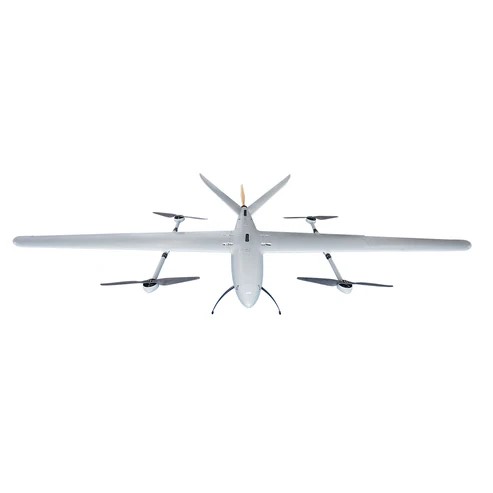

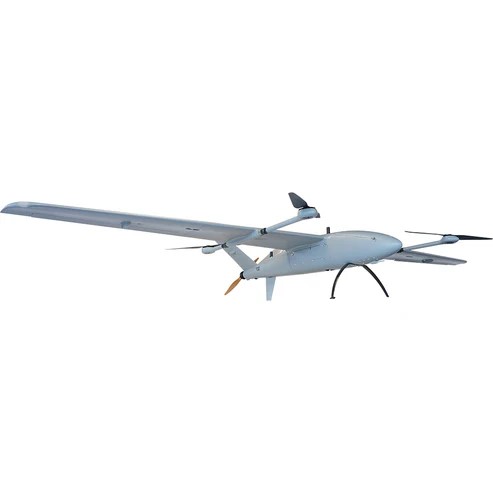

EV390 Chinese Unmanned Aerial Vehicle (UAV)
EV390
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
EV390 Chinese Unmanned Aerial Vehicle (UAV)
Designation
EV390
Alternate Designation
EV390
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Shenzhen-based Chinese company V-UAV
Date of Introduction
2024
Description
The EV390 Chinese Unmanned Aerial Vehicle (UAV) sets a new benchmark for the vertical takeoff and landing (VTOL) UAV industry. It features innovative modular design, excellent aerodynamic layout, powerful flight performance, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any long-range aerial operation.
Air & Air Defense Specifications
Engine
Battery
Max Speed
37.0 km/h
Range
150.0 km
Endurance
3.50 hrs
Service Ceiling
4500 m
Wingspan
3914.00 m
Payload Capacity
10 kg
System
Alternate Designation
EV390
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Shenzhen-based Chinese company V-UAV
Flight Controller
CUAV V7+ / Cube Orange+
Payload Capacity
10 kg
Payload Types
The EV390's payload bay accommodates various mission requirements. It supports a maximum payload of 10 kg and is compatible with multiple sensor options. These include A30TR-50 or U30TIRM-HD cameras for border patrol and inspection, A0305 3D oblique cameras or GS-100C LiDAR sensors for mapping and surveys, and a drop box system for search and rescue or package delivery.
Dimensions
Length
1,899 mm
Height
750 mm
Wingspan
3,914 mm
Maximum Takeoff Weight
35 kg
Automotive
Engine Name
4pc * 6S*30000mAH HED Li-Ion battery
Engine Type
Battery
Engine Power
INA
Maximum Speed
37m/s ( 130km/h)
Cruising Speed
23m/s (83km/h)
Maximum Climbing/Decent Speed
4m/s, 5m/s
Maximum Range
150 km
Service Ceiling
4,500 m
Wind Resistance
12m/s
Endurance
3.5hrs no load, 1.5hrs at 10kgs payload
Details
Country of Origin
China
Category
UAVs
Air > UAVs
Filter Label
E
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.9 m
Width
3.91 m
Height
0.75 m
Weight
35 kg
Operators (1)
China
