Mangust Class (Project 12150 Class) Russian Patrol Boat
Mangust Class
Patrol Boat
Other
Basic Information
Name
Mangust Class (Project 12150 Class) Russian Patrol Boat
Designation
Mangust Class
Alternate Designation
Mangust Class; Project 12150 Class
Equipment Type
Patrol Boat
Manufacturer
Vympel Shipyard
Date of Introduction
2001
Description

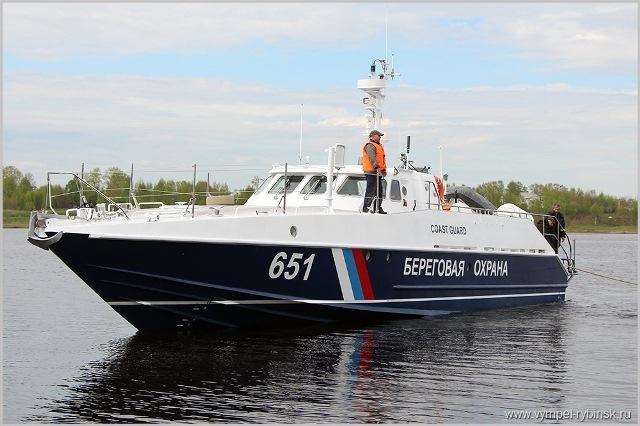

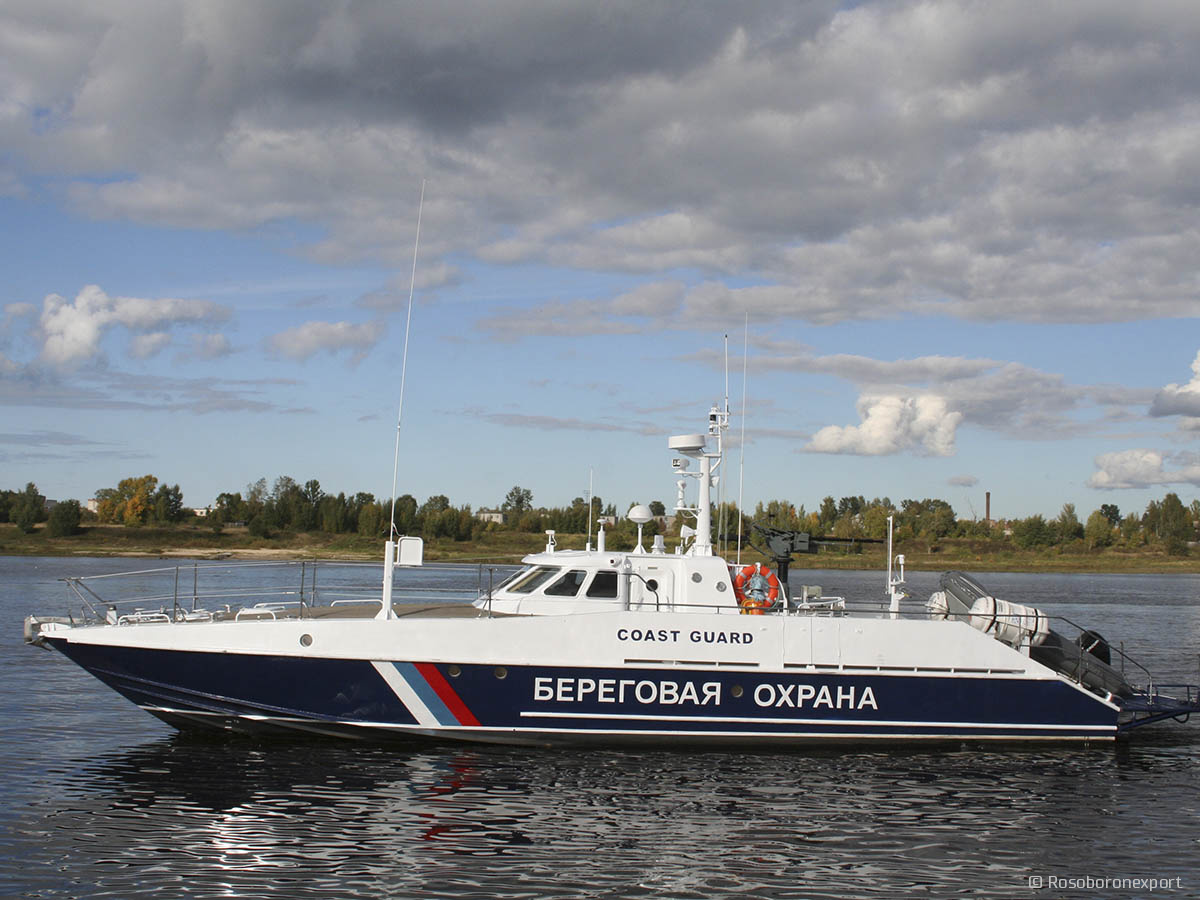

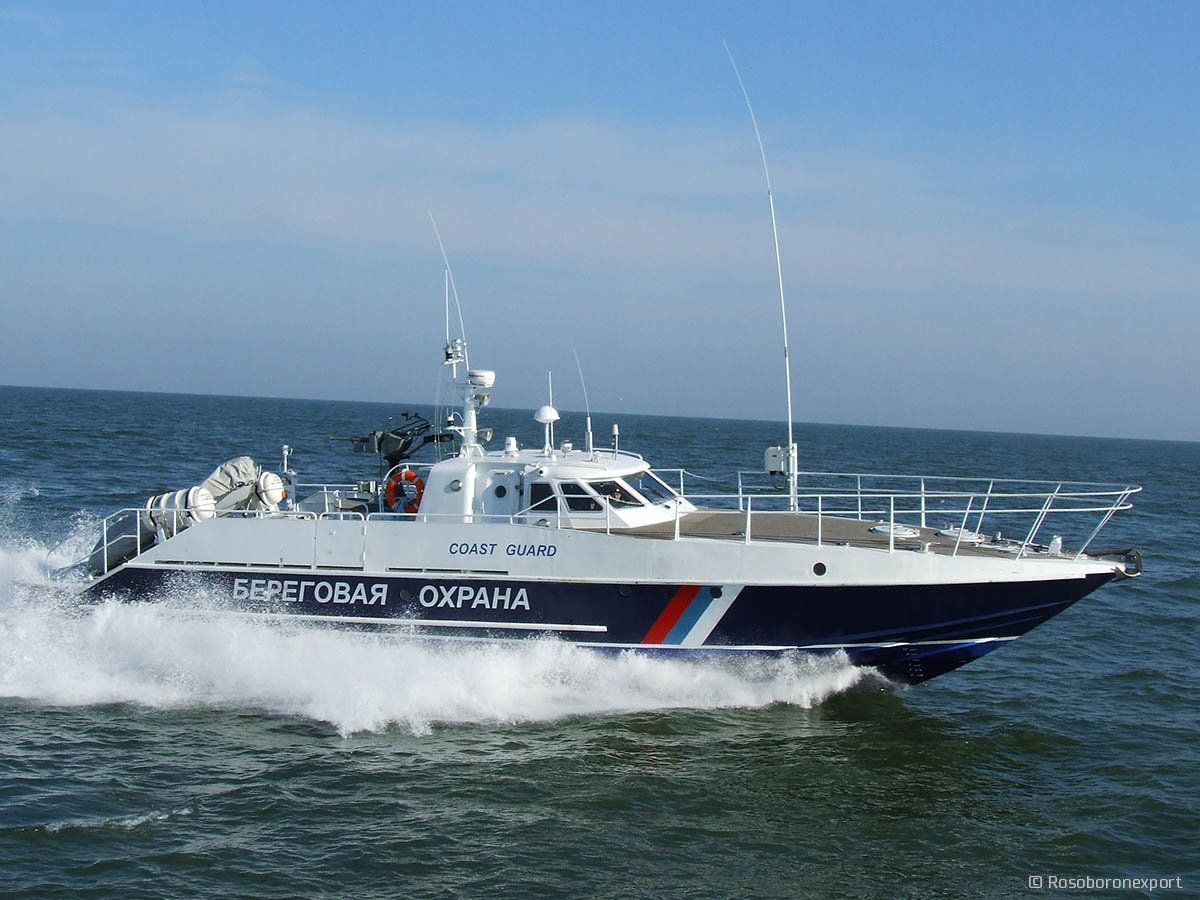

The Mangust Class patrol boat, also known as Project 12150, is a Russian Coast Guard vessel. The patrol craft is designed to operate in coastal areas, ports, and other littoral areas, to perform missions like protection of territorial maritime borders, law enforcement, other defense missions, search and rescue, protection of fisheries, and enforcing rules of navigation. The craft has a modern design with various comforts for the crew like low noise levels, air conditioning, and a well-designed layout for better working and living conditions for the crew. The crafts are armed with a variety of weapons to engage surface, air, and underwater threats. They are also equipped with a small boat to allow the boat to perform missions such as boarding operations.
Naval & Littoral Specifications
Crew
6
Beam
4.40 m
Draft
1.16 m
Variants
PSKA-600
Commissioned: 2001
Status: Active
Fleet: INA
PSKA-601
Commissioned: 2003
Status: Active
Fleet: INA
PSKA-602
Commissioned: 2003
Status: Active
Fleet: INA
PSKA-603
Commissioned: 2006
Status: Active
Fleet: INA
PSKA-604
Commissioned: 2007
Status: Active
Fleet: INA
PSKA-605
Commissioned: 2008
Status: Active
Fleet: INA
ALEXANDR ILIN
Commissioned: 2008
Status: Active
Fleet: INA
PSKA-606
Commissioned: 2003
Status: Active
Fleet: INA
PSKA-607
Commissioned: 2003
Status: Active
Fleet: INA
PSKA-608
Commissioned: 2009
Status: Active
Fleet: INA
PSKA-609
Commissioned: 2009
Status: Active
Fleet: INA
PSKA-610
Commissioned: 2010
Status: Active
Fleet: INA
PSKA-611
Commissioned: 2010
Status: Active
Fleet: INA
PSKA-612
Commissioned: 2010
Status: Active
Fleet: INA
PSKA-613
Commissioned: 2010
Status: Active
Fleet: INA
PSKA-614
Commissioned: 2010
Status: Active
Fleet: INA
PSKA-615
Commissioned: 2010
Status: Active
Fleet: INA
System
Alternative Designation
Mangust Class; Project 12150 Class
Type
Patrol Boat
Builder
Vympel Shipyard, Rybinsk, Russia
Crew
6 ea
Note #1
The high speed allows the boat to effectively conduct search-and-rescue (SAR) missions involving the transportation of rescue teams, survival aids, medical and fire-fighting equipment to vessels in distress. The patrol boats can be equipped with lightweight diving equipment.
Note #2
The Mangust patrol boats can be deployed in territorial waters for monitoring the commercial shipping and enforcement of navigation regulations in outer or inner harbors and neighboring coastal areas. The vessels also perform missions in support of maritime law enforcement agencies, customs, and fishery protection authorities.
Dimensions
Length
19.45 m
Beam
4.40 m
Draft
1.16 m
Displacement, Standard
23.6 tons
Displacement, Full Load
27.2 tons
Propulsion System
Engine Name
2 x Zvezda M-470K
Engine Type
Diesel
Engine Power
3,000 total bhp
Maximum Range
410 nm at 35 knots
Maximum Speed
52 knots
Gun Weapon Systems
Gun Weapon System #1
Name
1 x KPV 14.5mm Heavy Machine Gun
Type
Heavy Machine Gun
Caliber
14.5 mm
Length
1,980 mm
Barrel Length
1,346 mm
Width
162 mm
Height
225 mm
Weight
49 kg
Action
Short recoil operation
Rate of Fire
600 rpm
Muzzle Velocity
1,005 m/s
Maximum Firing Range
4,000 m
Effective Firing Range
3,000 m
Feed System
40-round belt
Sights
iron or optical
Gun Weapon Systems #1 Ammunition
Type
Rifle
Caliber
14.5 mm
Cartridge
14.5×114 mm
Basic Load
INA
Grenade Launcher Systems
Grenade Launcher #1
Name
2 x AGS-17 Plamya
Type
Automatic Grenade Launcher
Caliber
30 mm
Length
840 mm
Weight
31 kg
Action
Blowback
Rate for Fire
400 round/min
Muzzle Velocity
185 m/s
Effective Firing Range
800-1,700 m
Feed System
29 x Grenades (Belt)
Sights
Adjustable iron sights, optional mount required for optical sights
Grenade Launcher #1 Ammunition
Type
Grenade Projectile
Caliber
30 mm
Cartridge
30×29mm grenade
Basic Load
29 x Grenades (Belt)
Grenade Launcher #2
Name
1 x DP-64 Nepryadva
Type
Double-Barreled Over/Under Grenade Launcher
Caliber
45 mm
Length
820 mm
Width
110 mm
Height
275 mm
Weight
10 kg
Action
Side break open
Detonation Mechanism
Depthy
Maximum Firing Range
400 m
Feed System
2 Rounds
Sights
Direct & Indirect iron sights
Grenade Launcher #2 Ammunition
Type
Grenade Projectile
Caliber
45 mm
Cartridge
INA
Basic Load
INA
Communications
Note
The communication systems aboard include sailor MF/HF and VHF radio stations with DSC function, a NAVTEX receiver, three portable radio stations, a COSPAS-SARSAT emergency radio buoy and internal communication systems. These systems meet the Global Maritime Distress and Safety System (GMDSS) requirements for А1 and А2 sea areas.
Radar Systems
Navigation Radar
1 x SL-72 navigation radar or 1 x MR-415.1 Poisk navigation radar
Protection
Hull
Glass-reinforced plastic (GRP) construction.
Countermeasures
INA
NBC Water Washdown System
Yes
Image Sources
Notes
https://www.homelandsecurity-technology.com/projects/project-12150-mangust-fast-patrol-boats/attachment/project-12150-mangust-fast-patrol-boats1/; https://en.topwar.ru/114566-sudostroitelnyy-zavod-vympel-postroil-partiyu-patrulnyh-katerov-mangust-proekta-12150.html; https://defencerussia.wordpress.com/2014/10/15/sevastopol-guards-got-new-patrol-boats/;
Details
Country of Origin
Russia
Category
Naval
Naval
Filter Label
M
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
19.45 m
Width
4.4 m
Height
—
Weight
—
Operators (1)
Russia
