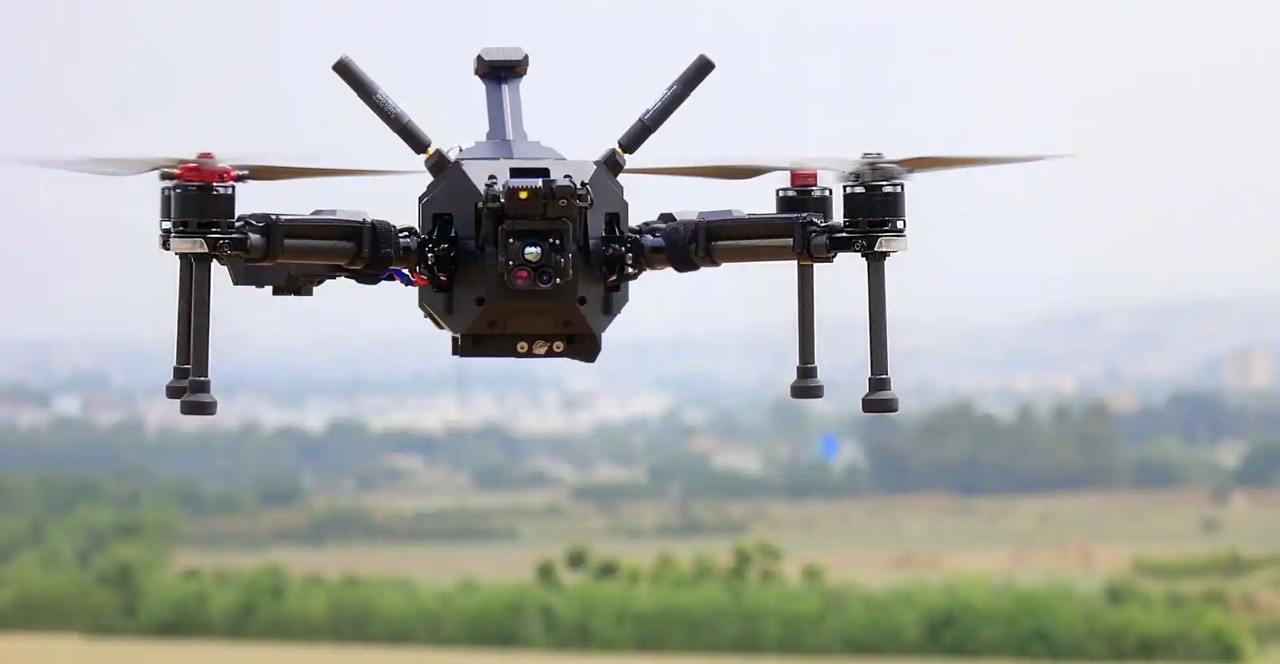

Honey Badger Israeli Unmanned Aerial Vehicle (UAV)

Honey Badger

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Honey Badger Israeli Unmanned Aerial Vehicle (UAV)
Designation
Honey Badger
Alternate Designation
Honey Badger
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Xtend Defense
Date of Introduction
2024
Description

The Honey Badger Israeli Unmanned Aerial Vehicle (UAV) is designed for operations in environments where GPS is unavailable, such as tunnels, urban interiors, and areas affected by signal jamming. This system supports multiple flight modes, including pilot control, drop-based actions, and camera-focused reconnaissance. Its autonomous features allow the operator to designate a target point on the screen for navigation, after which the drone automatically avoids obstacles and navigates into specific targets like doors and windows. The Honey Badger utilizes mesh networking, allowing multiple drones to operate under a single operator, which enhances distributed awareness and coordination in multi-node scenarios. It is engineered to perform in environments with electromagnetic interference and within enclosed spaces, such as indoor or underground combat zones. The UAV has been employed in missions that require real-time intelligence, precise identification of objects or individuals, and minimized exposure of human personnel. Xtend, the company behind the Honey Badger, was founded by Aviv Shapira, Matteo Shapira, and Rubi Liani, who previously developed immersive control technologies for drone applications. Initially, Xtend focused on the gaming and commercial sectors but pivoted to defense applications in response to operational demands from the Israeli Defense Forces (IDF). During the conflicts in Gaza in 2019 and 2023, Xtend adjusted its platforms for tunnel exploration, reconnaissance in confined environments, and short-range urban surveillance. The systems were deployed to track targets and assist in hostage recovery efforts. Feedback loops from IDF field units have been used to refine the drone systems, including the Honey Badger. Xtend’s platforms have also seen use in Northern Israel, Lebanon, and Ukraine. The company expanded from small-scale deployments to large production cycles, continuously upgrading its technology based on direct field experience. Additionally, it incorporated its UAV technology into quadruped robots for reconnaissance missions in situations where aerial flight was not feasible.

Air & Air Defense Specifications
Engine Battery
Max Speed 70.0 km/h
Range 6.4 km
Endurance 35.00 hrs
Rotor Diameter 35.60 m
Payload Capacity 3 kg
System
Alternate Designation Honey Badger
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Xtend Defense
Payload Capacity 3 kg. Payload integration is modular through a standardized rail and Generic ICD, allowing a variety of mission equipment. It is NDAA compliant.
Boot Time Under 40 sec
Interchangeable Payload Generic ICD
Flight Modes Pilot / Drop / Camera
Target Tracking AI acquisition and targeting
Encryption 256 AES | Sense and avoid
Communications 1.980 - 2.7 GHz
TAK Interface ATAK - RTSP - C2 API

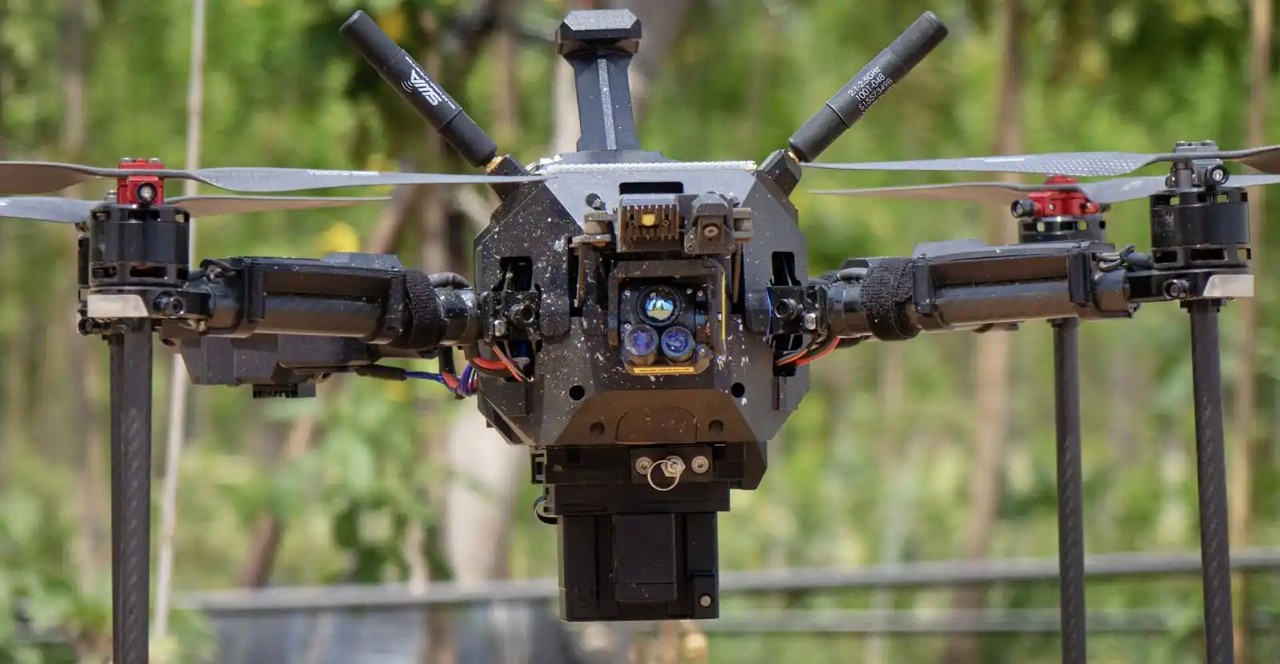

Camera It is equipped with a 2-axis gimbal stabilizer carrying an electro-optical camera with up to x40 zoom and a thermal sensor with x4 zoom.
Dimensions
Length 85.1 cm
Width 70.1 cm
Rotor Diameter 35.6 cm
Height 25.1 cm
Weight, Empty 4 kg
Maximum Takeoff Weight 7 kg
Automotive
Engine Name INA
Engine Type Battery
Engine Power INA
Maximum Speed 70 km/h
Maximum Range 6.4 km
Service Ceiling INA
Endurance 35 minutes without payload and 18 minutes with payload.
Details
Country of Origin Israel
Category UAVs
Air > UAVs
Filter Label
H
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
0.85 m
Width
0.7 m
Height
0.25 m
Weight
7 kg
Operators (3)
Israel
Ukraine
Lebanon
